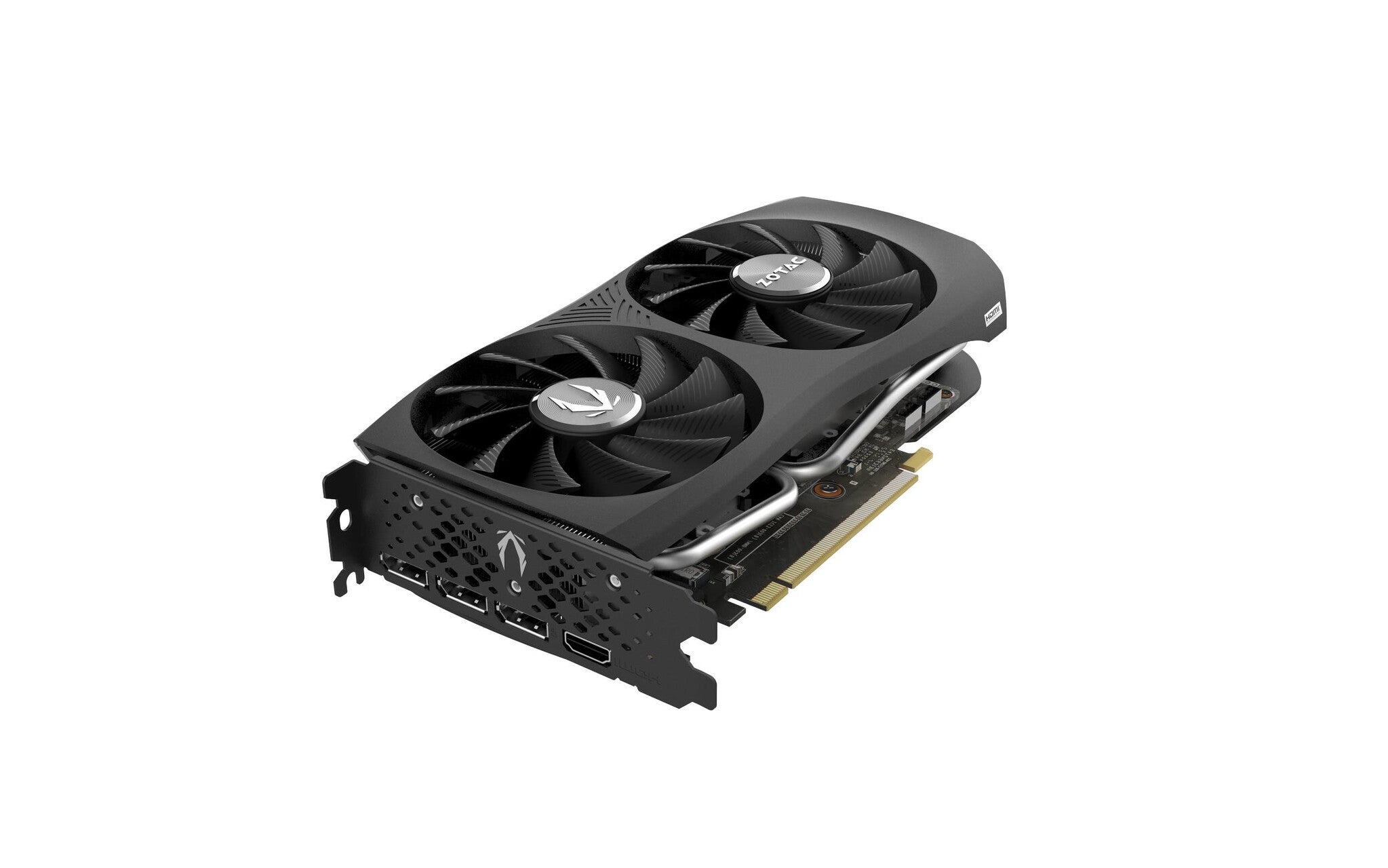

Zotac GAMING Twin Edge OC – NVIDIA 8 GB GDDR6 GeForce RTX 4060 Ti graphics card
8 GB, GDDR6, 128-bit, PCI Express 4.0 x8, 2550 MHz boost clock, HDMI, 3x DisplayPort, 1x 8-pin, RGB
The ZOTAC GAMING GeForce RTX 4060 Ti 8GB Twin Edge OC is a compact and powerful graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2.2 slot size, it’s an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and performance in the latest title releases.
| Processor |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed |
2550 MHz |
| CUDA cores |
4352 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4060 Ti |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
18 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express x8 4.0 |
| Performance |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
2.2 |
| Number of fans |
2 fan(s) |
| Cooling technology |
Zotac IceStorm 2.0 |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 8-pin |
| Power consumption (max) |
160 W |
| Minimum system power supply |
500 W |
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Weight & dimensions |
| Depth |
225.5 mm |
| Height |
123.2 mm |
| Width |
40.1 mm |
| Packaging data |
| Package type |
Box |
| Manual |
Yes |
