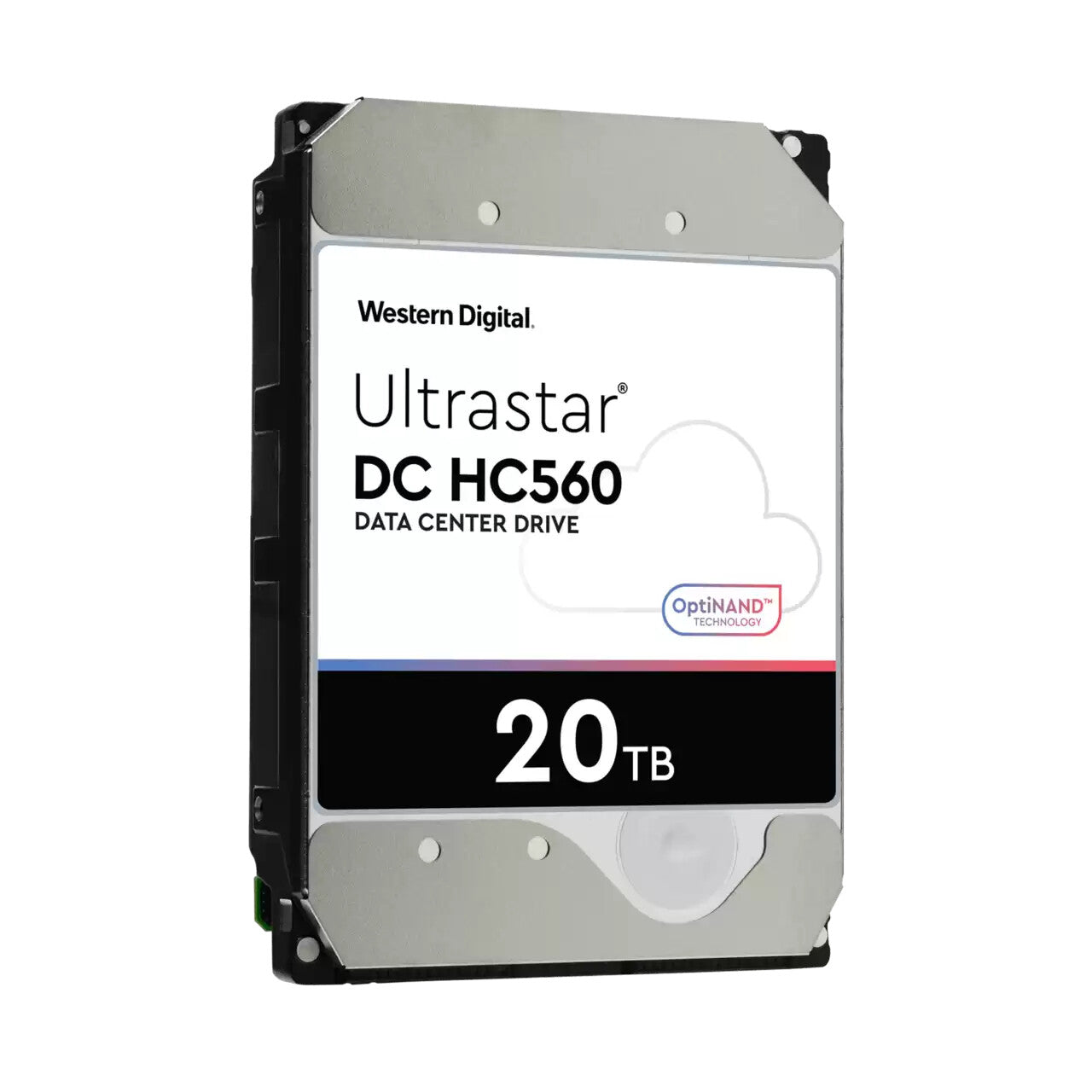

Western Digital Ultrastar DC HC560 – 7.2K RPM 3.5″ SAS / Serial ATA II HDD – 20 TB
| Features | |
|---|---|
| Certification | BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 2500000 h |
| Noise level (idle) | 2 dB |
| Workload rate limit | 550 TB/year |
| 24/7 operation | Yes |
| Average latency | 4.16 ms |
| HDD interface transfer rate | 12 Gbit/s |
| Storage drive buffer size | 512 MB |
| Hot-swap | No |
| Component for | Server/workstation |
| Type | HDD |
| Interface | SAS / Serial ATA II |
| HDD speed | 7200 RPM |
| HDD capacity | 20 TB |
| HDD size | 3.5″ |
| Power | |
|---|---|
| Operating voltage | 5 / 12 V |
| Power consumption (write) | 9.3 W |
| Power consumption (idle) | 6.1 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 5 – 60 °C |
| General | |
|---|---|
| Product Family | Ultrastar |
| Weight & dimensions | |
|---|---|
| Weight | 690 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
