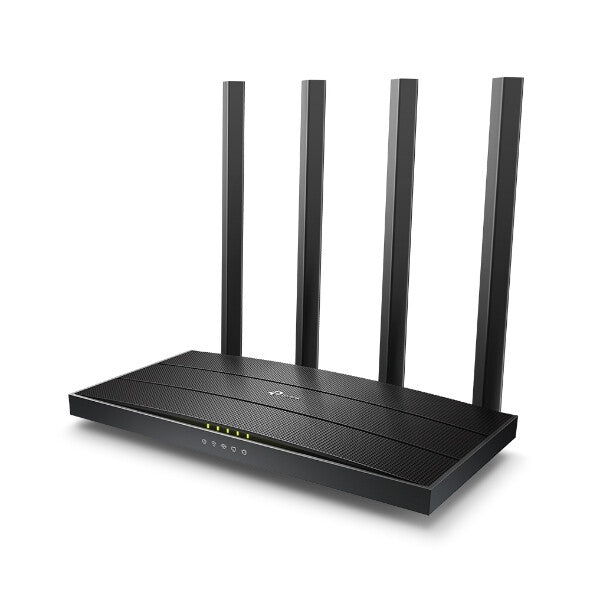

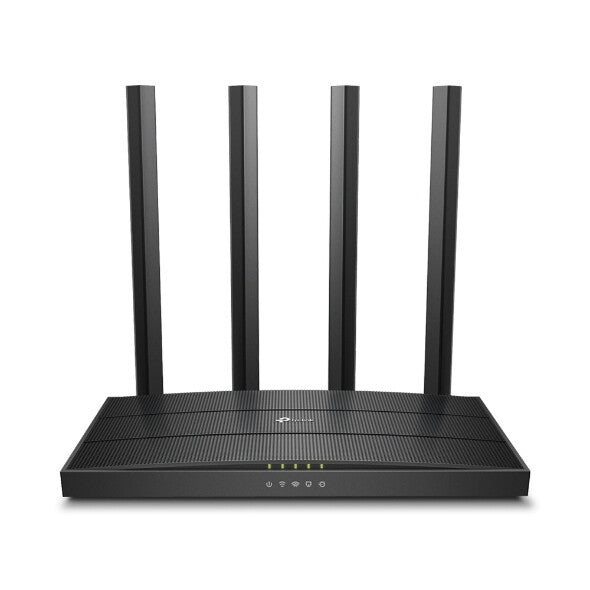

TP-Link AC1200 – Dual-band (2.4 GHz / 5 GHz) wireless router in Black
AC1200
Wi-Fi Router MU-MIMO Gigabit
Smooth Entertainment with AC1200 Dual Band Wi-Fi
The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Boosted Wi-Fi Coverage
Throughout Your Home
Four external antennas send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony. Beamforming technology detects devices, even if they are far-away or low-powered, and concentrates wireless signal strength towards them.
MU-MIMO Brings More Simultaneous Connections
MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections. Connect your favorite wired devices to Archer C6 and get impressed!
TP-Link OneMesh™:
Flexibly Create a Whole-Home Wi-Fi
OneMesh™ is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMeshTM range extender to a OneMesh™ router. No more searching around for a stable connection.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| Receiver sensitivity | 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm;11ac HT80 mcs9:-62dBm;2.4GHz:11g 54Mbps:-78dBm;11n HT20 mcs7:-74dBm;11n HT40 mcs7:-71dbm； |
| VPN server | PPTP VPN, OpenVPN |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| 5G | No |
| 3G | No |
| 4G | No |
| Ports & interfaces | |
|---|---|
| Memory card slot(s) | No |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Management features | |
|---|---|
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2 |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, Status, WLAN, WPS |
| Wall mountable | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Antenna | |
|---|---|
| Transmit power | 20 – 23 dBmW |
| Antenna design | External |
| Features | |
|---|---|
| Certification | FCC, CE, RoHS |
| Processor cores | 2 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Weight & dimensions | |
|---|---|
| Width | 215 mm |
| Depth | 117 mm |
| Height | 32 mm |
