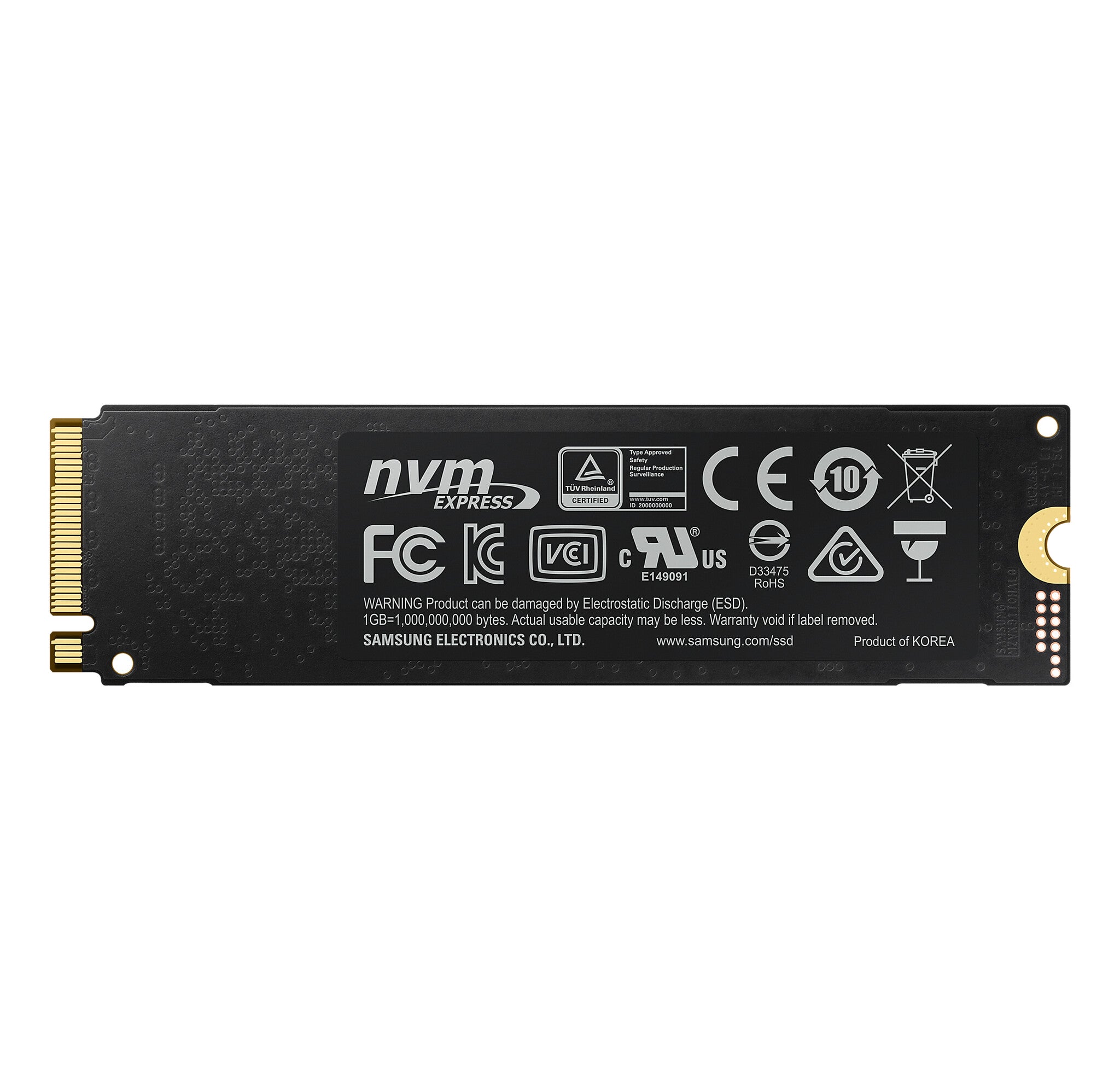

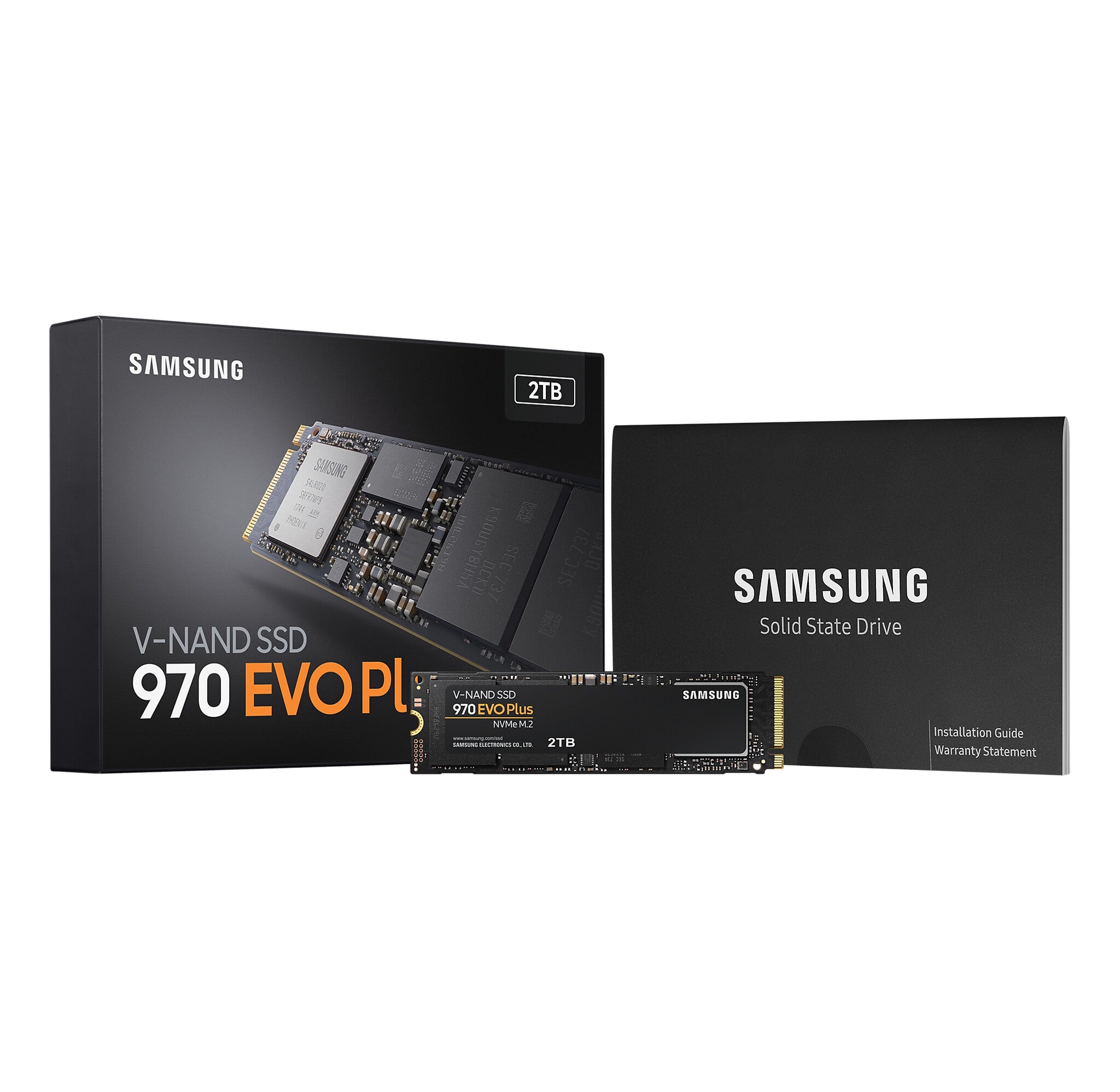

Samsung 970 EVO Plus – PCI Express 3.0 V-NAND MLC NVMe M.2 SSD – 2 TB
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. In capacities up to 2TB, with reliability of up to 1,200 TBW.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost.
Design Flexibility
The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.
Exceptional Endurance
The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| DevSlp (device sleep) support | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | Samsung Phoenix |
| Random write (4KB) | 560000 IOPS |
| Random read (4KB) | 620000 IOPS |
| Write speed | 3300 MB/s |
| Read speed | 3500 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC |
| NVMe version | 1.3 |
| NVMe | Yes |
| Memory type | V-NAND MLC |
| Interface | PCI Express 3.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Power | |
|---|---|
| Power consumption (idle) | 0.03 W |
| Power consumption (sleep) | 0.005 W |
| Power consumption (standby) | 0.03 W |
| Power consumption (average) | 6 W |
| Operating voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8 g |
| Height | 2.38 mm |
| Depth | 22.1 mm |
| Width | 80.2 mm |
| Packaging data | |
|---|---|
| Bundled software | Magician Software for SSD management |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
