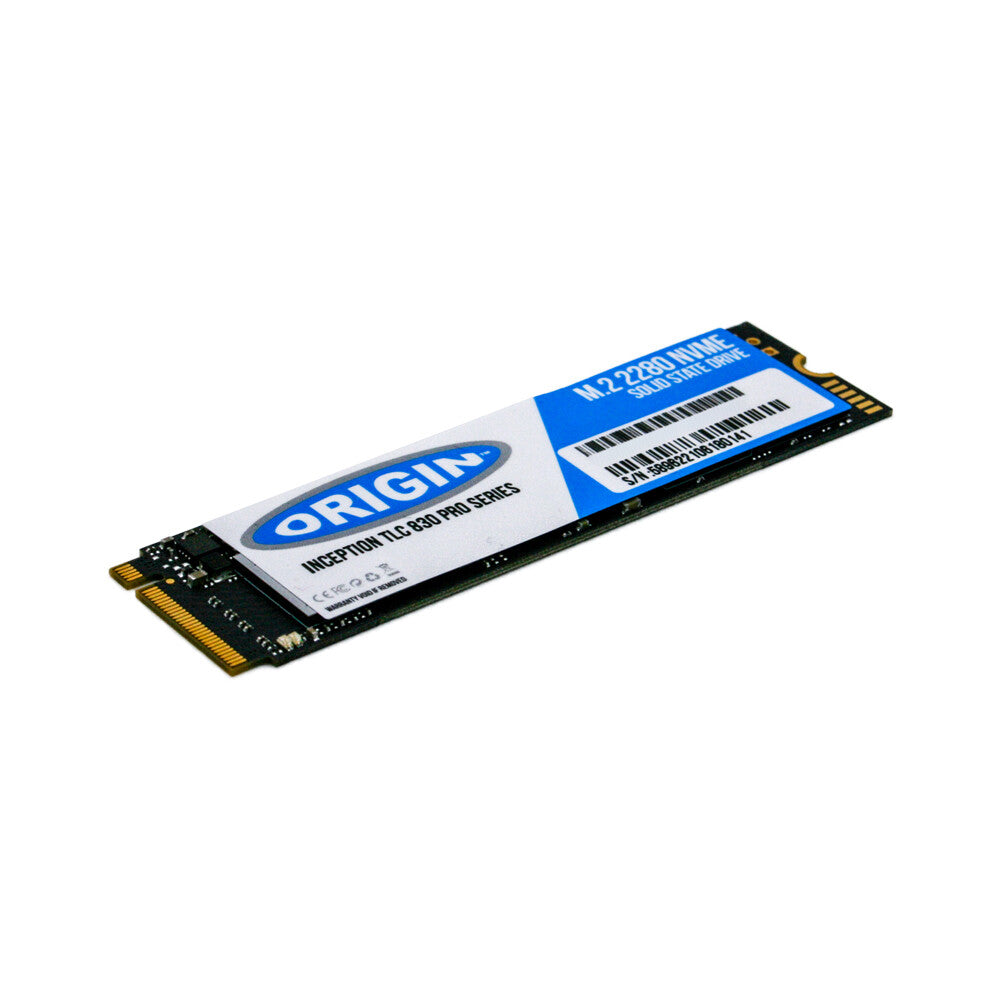

Origin Storage Inception TLC830 Pro Series – PCIe 3.0 NVMe 3D TLC M.2 SSD – 256 GB
Inception TLC830 Pro Series 256GB PCIe 3.0 NVMe M.2 80mm 3D TLC
The Inception TLC830 Pro range of SSD Solutions are manufactured by Origin using the highest quality Tier 1 NAND and the latest generation of controllers which enables us to provide both high performance and strong reliability. All of our Inception SSDs come with 3 years advanced replacement warranty alongside free, in -house pre and post sales technical support. We can supply the TLC830 Pro in form factors of 2.5″, 3.5″ & M.2 with either SATA or NVME interfaces, whilst being available in a range of capacities designed to increase the performance & extend the lifecycle of any laptop or desktop.
| Features |
| Compatible products |
Universal |
| Market segment |
Mobile |
| TBW rating |
100 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mean time between failures (MTBF) |
1000000 h |
| Low-density parity-check (LDPC) |
Yes |
| Hot-swap |
No |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| PCI Express interface data lanes |
x4 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Access time |
0.2 ms |
| Random write (4KB) |
179200 IOPS |
| Random read (4KB) |
102400 IOPS |
| Write speed |
1200 MB/s |
| Read speed |
1950 MB/s |
| Data transfer rate |
8 Gbit/s |
| Hardware encryption |
No |
| Component for |
PC/Laptop |
| NVMe version |
1.3 |
| NVMe |
Yes |
| Memory type |
3D TLC |
| Interface |
PCI Express 3.0 |
| SSD capacity |
256 GB |
| SSD form factor |
M.2 |
| Power |
| Power consumption (idle) |
0.48 W |
| Power consumption (write) |
2.83 W |
| Power consumption (read) |
2.89 W |
| Operating voltage |
3.3 V |
| Operational conditions |
| Maximum operating altitude |
120000 m |
| Operating shock |
1500 G |
| Operating vibration |
16 G |
| Storage relative humidity (H-H) |
5 – 98% |
| Operating relative humidity (H-H) |
5 – 98% |
| Storage temperature (T-T) |
-45 – 105 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging data |
| Package type |
Blister |
| Screws included |
No |
| Storage drive adapter included |
No |
| Logistics data |
| Harmonized System (HS) code |
84717070 |
