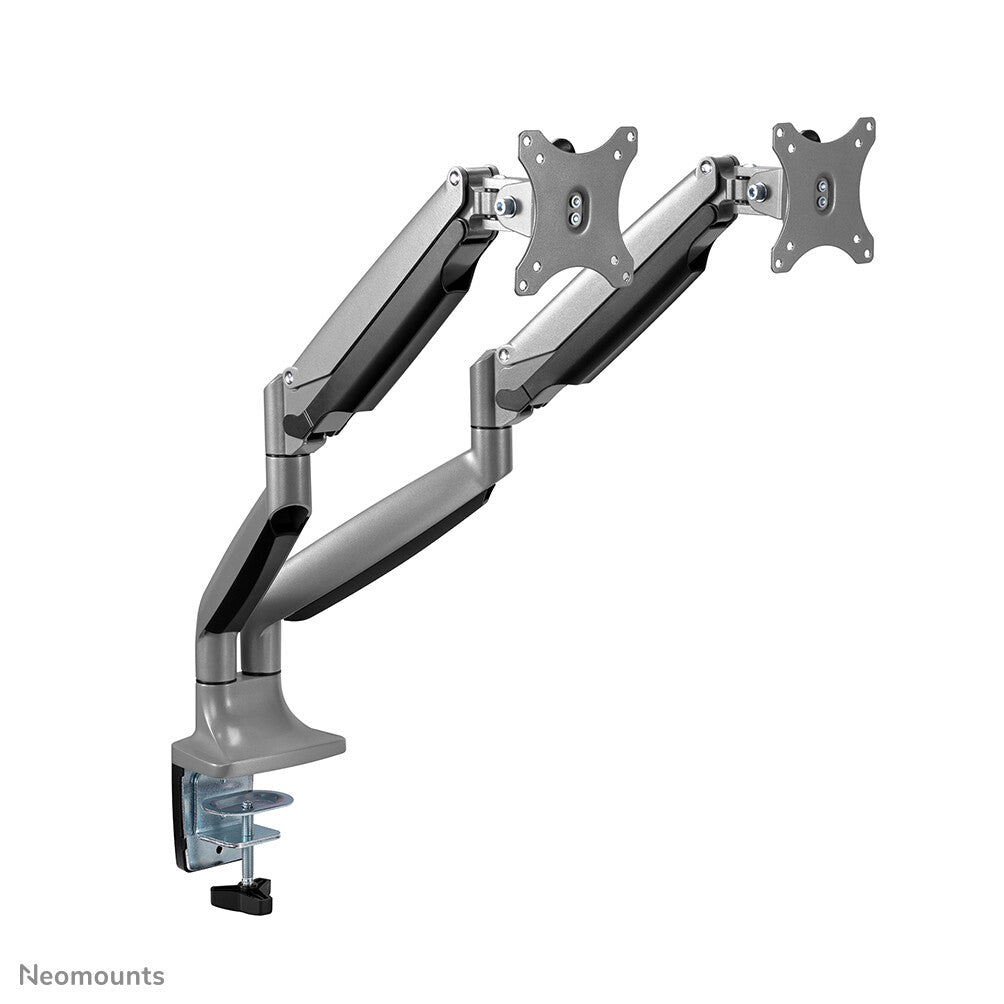

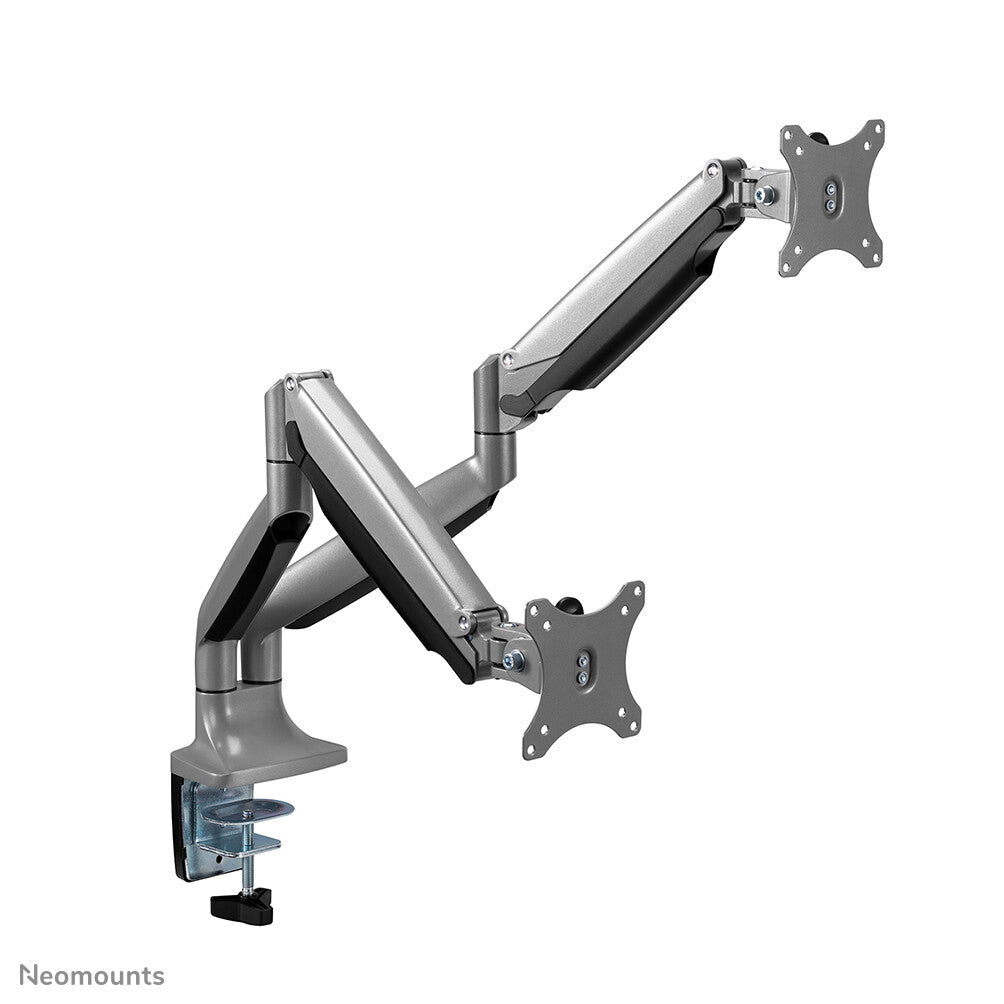

Neomounts NM-D750DSILVER – Desk monitor mount for 25.4 cm (10″) to 81.3 cm (32″)
The Neomounts desk mount, model NM-D750DSILVER is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32″. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts’ unique tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D750DSILVER has three pivot points and is suitable for screens up to 32″ (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Distance to the wall (max) | 65.1 cm |
| Distance to the wall (min) | 12.6 cm |
| Number of displays supported | 2 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32″) |
| Minimum screen size | 25.4 cm (10″) |
| Maximum weight capacity | 9 kg |
| Ergonomics | |
|---|---|
| Angle of rotation | 180° |
| Swivel angle | 180° |
| Tilt angle range | 0 – 180° |
| Height adjustment range | 170 – 510 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Product colour | Silver |
| Weight & dimensions | |
|---|---|
| Package height | 570 mm |
| Package depth | 116 mm |
| Package width | 465 mm |
| Height | 505 mm |
| Depth | 615 mm |
| Logistics data | |
|---|---|
| Products per pallet (EU) | 36 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case width | 590 mm |
| Other features | |
|---|---|
| Country of origin | China |
