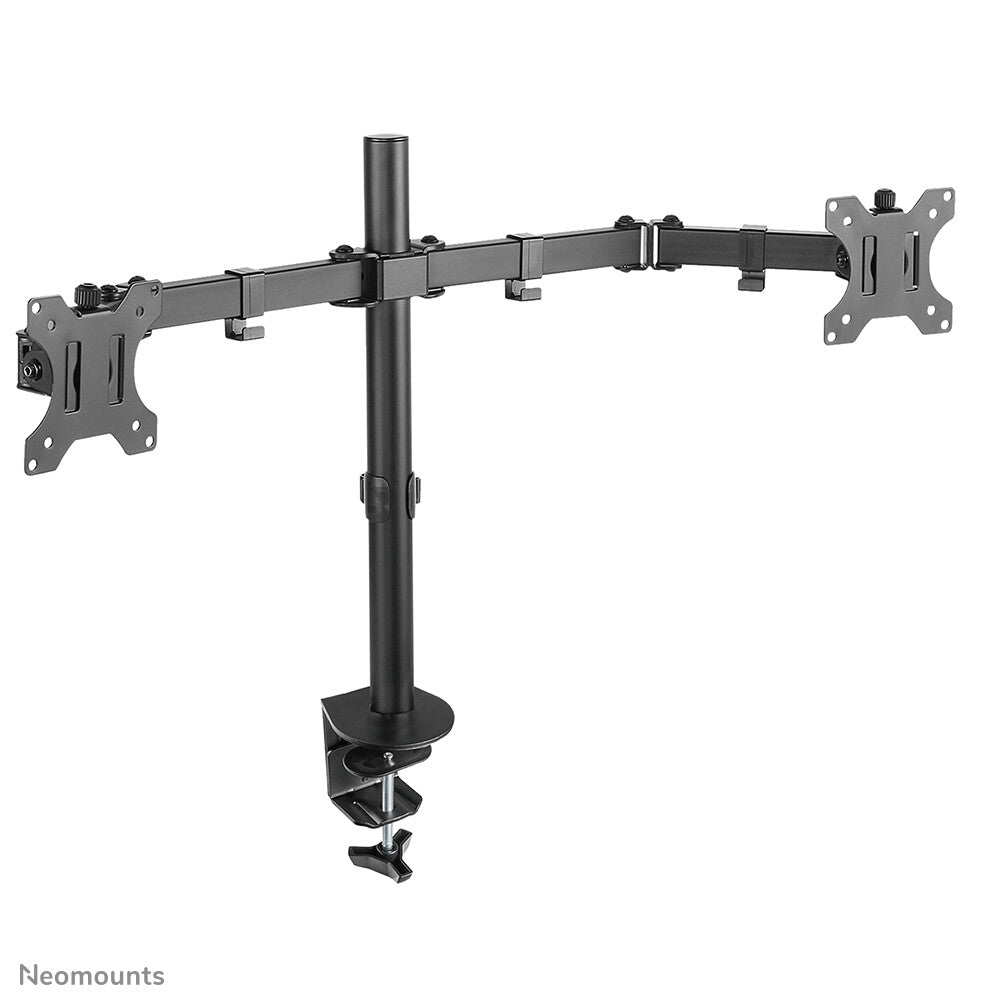

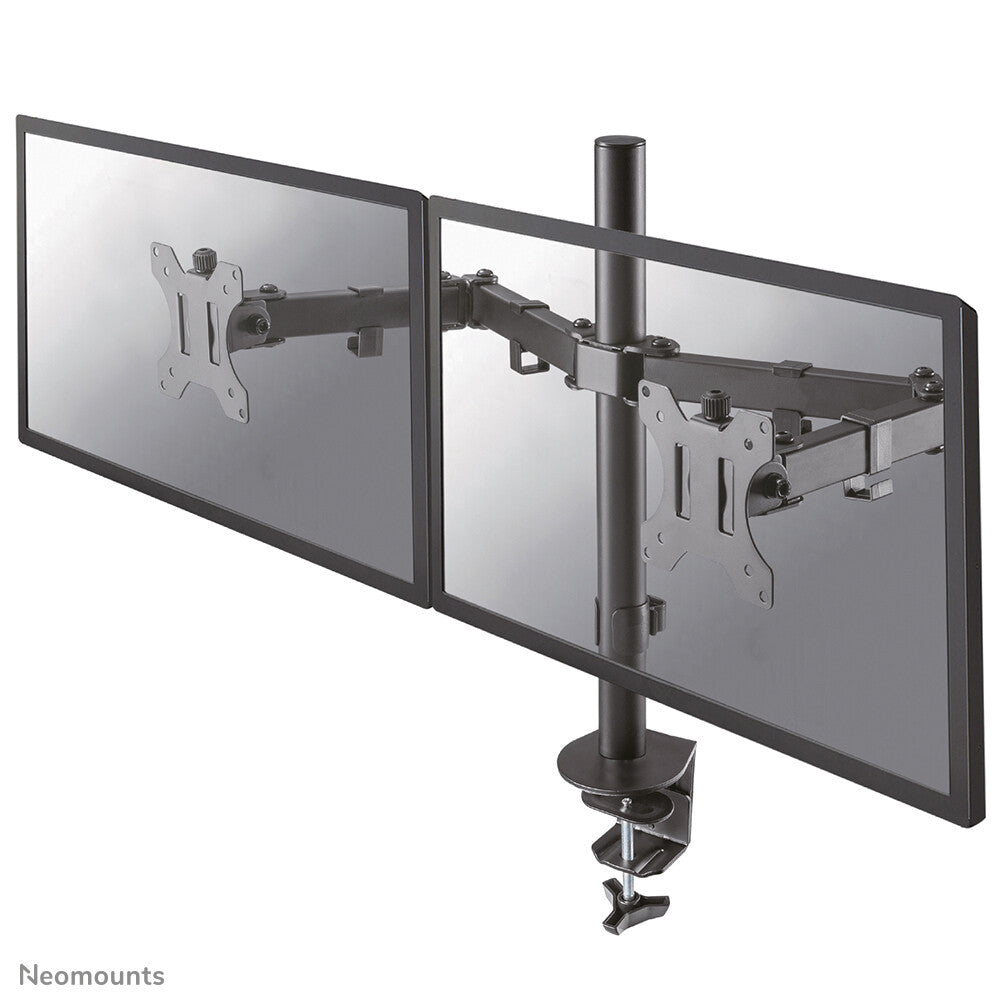

Neomounts FPMA-D550DBLACK – Desk monitor mount for 25.4 cm (10″) to 81.3 cm (32″)
The Neomounts desk mount, model FPMA-D550DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32″. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550DBLACK has three pivot points and is suitable for screens up to 32″. The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Number of displays supported | 2 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32″) |
| Minimum screen size | 25.4 cm (10″) |
| Maximum weight capacity | 8 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Angle of rotation | 360° |
| Swivel angle | 180° |
| Tilt angle range | 0 – 90° |
| Depth adjustment range | 40 – 460 mm |
| Adjustable depth | Yes |
| Height adjustment range | 0 – 440 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package height | 489 mm |
| Package depth | 120 mm |
| Package width | 18 mm |
| Height | 440 mm |
| Depth | 460 mm |
| Width | 800 mm |
| Logistics data | |
|---|---|
| Products per pallet (EU) | 96 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 505 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case width | 265 mm |
| Other features | |
|---|---|
| Country of origin | China |
