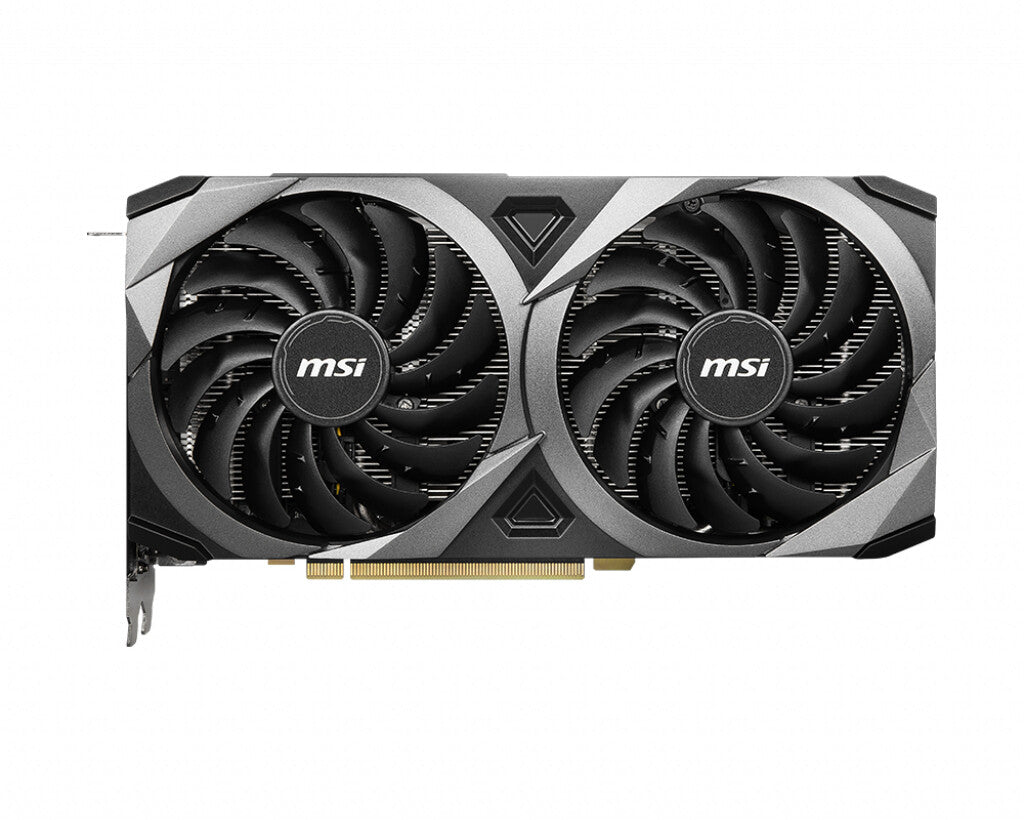

MSI VENTUS 2X OC LHR – NVIDIA 8 GB GDDR6 GeForce RTX 3070 graphics card
NVIDIA GeForce RTX 3070, 1755MHz, 8GB GDDR6, 256 bit, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4a), CUDA, DirectX 12.0, OpenGL 4.6, VR, 220W
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.

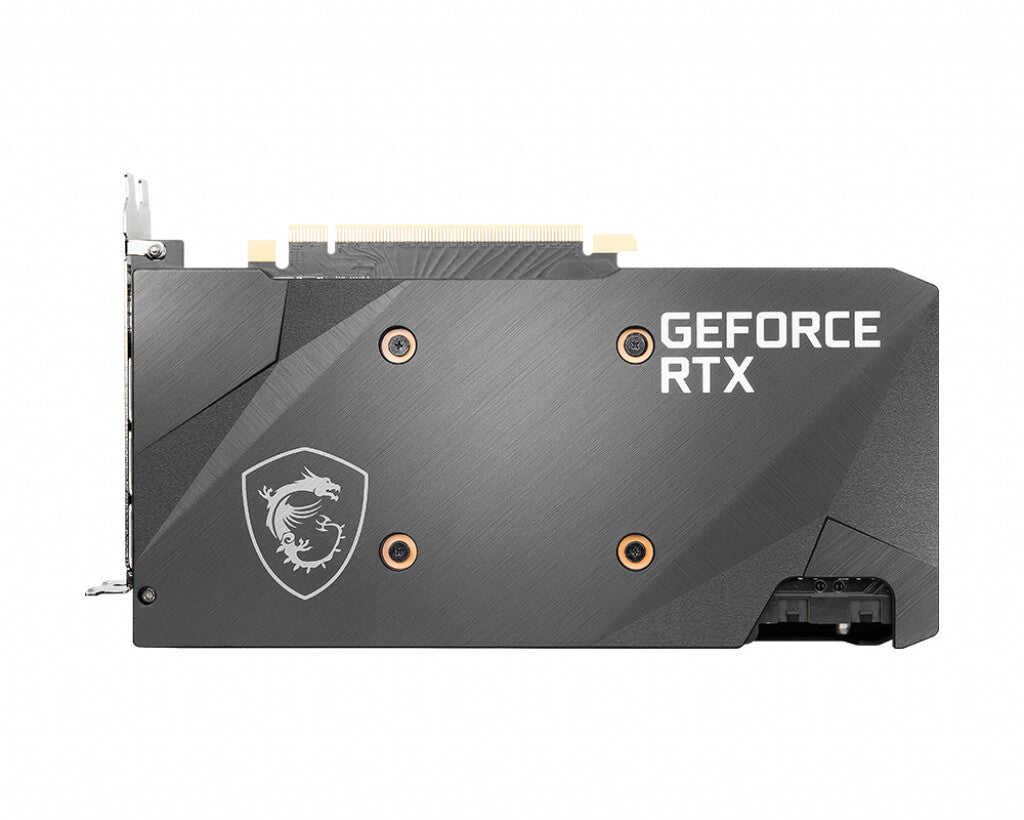

REINFORCING BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Bringing It All Together
MSI’s exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor frequency |
1755 MHz |
| CUDA cores |
5888 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 3070 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
14 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
| Dual Link DVI |
No |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
| Product colour |
Grey |
| Number of slots |
2 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
2 fan(s) |
| Cooling technology |
MSI TORX Fan 3.0 |
| Cooling type |
Active |
| Power |
| Power consumption (typical) |
220 W |
| Supplementary power connectors |
2x 8-pin |
| Minimum system power supply |
650 W |
| General |
| Product Family |
VENTUS |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
| Depth |
52 mm |
| Height |
124 mm |
| Length |
232 mm |
| Weight |
832 g |
| Packaging data |
| Package type |
Box |
| Package weight |
1.25 kg |
