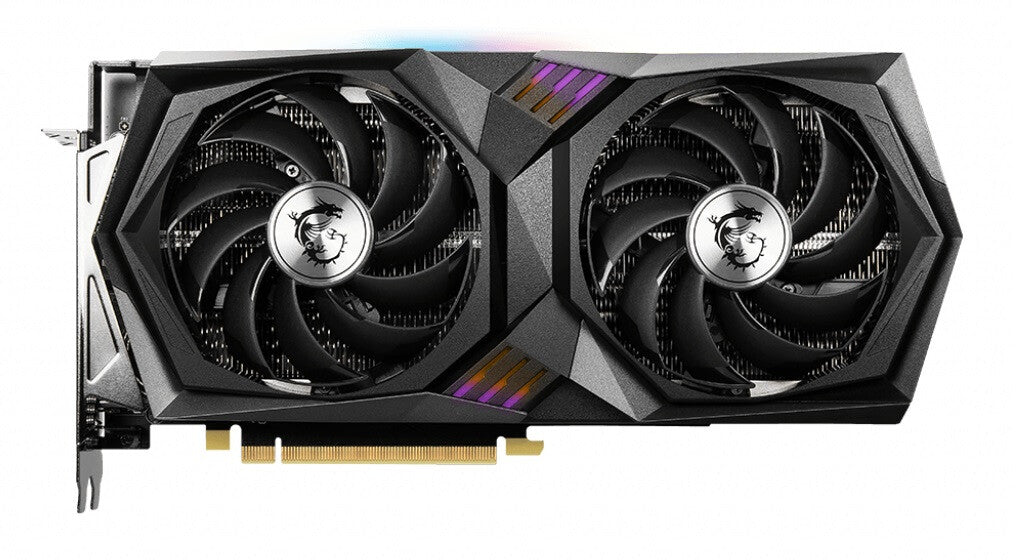

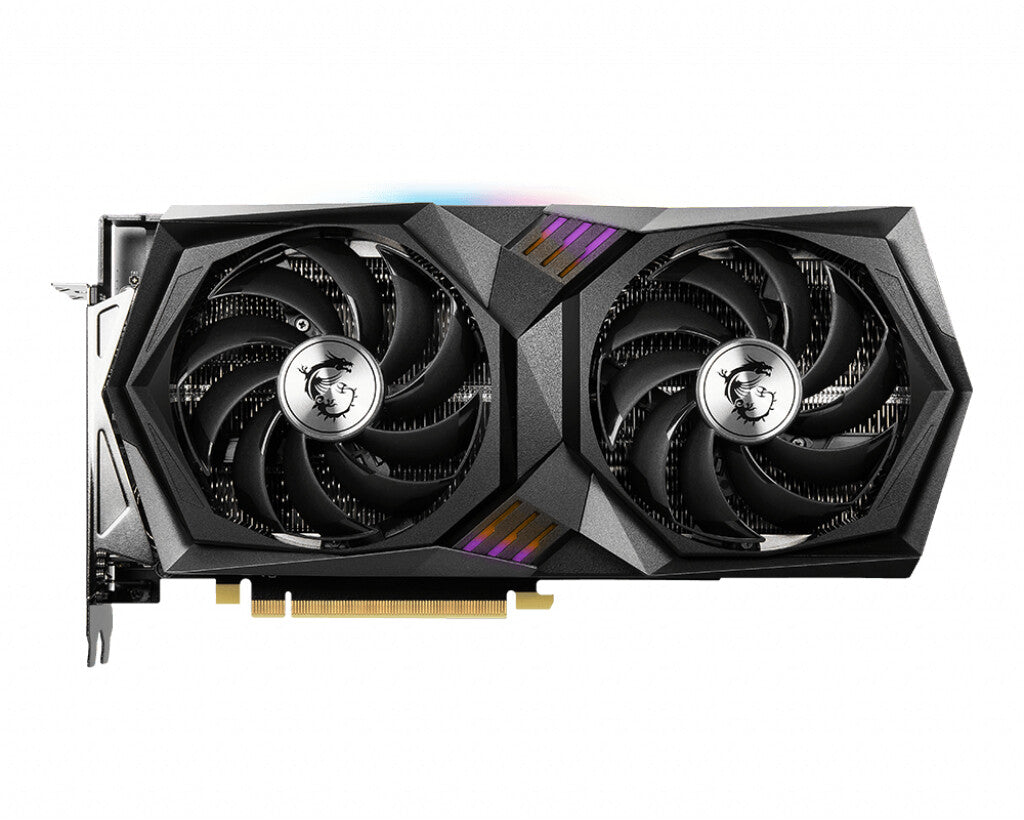

MSI GAMING X 12G – NVIDIA 12 GB GDDR6 GeForce RTX 3060 graphics card
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT ‘EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TWIN FROZR 8 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TWIN FROZR 8 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional layers of protection against electrical damage.
BEND THE RULES, NOT THE CARD
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Bringing It All Together
MSI’s exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 1837 MHz |
| CUDA cores | 3584 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3060 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 15 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Number of fans | 2 fan(s) |
| Cooling technology | MSI TORX Fan 4.0 |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 170 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| Minimum system power supply | 550 W |
| General | |
|---|---|
| Product Family | GAMING |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Depth | 276 mm |
| Height | 131 mm |
| Width | 51 mm |
| Weight | 996 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
