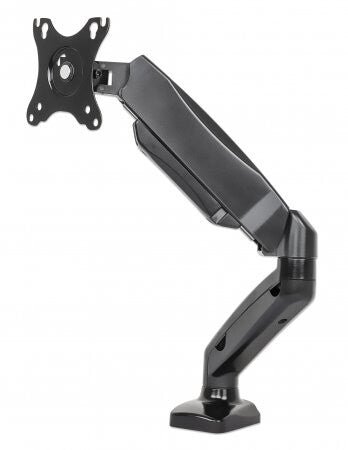

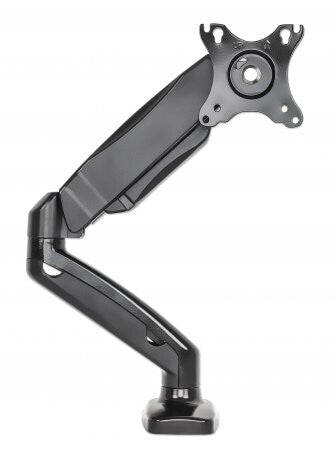

Manhattan 462303 – Desk monitor mount for 33 cm (13″) to 68.6 cm (27″)
Articulating Monitor Arm with One-Touch Gas Spring Adjustment – ergonomic, full motion and height adjustable
Turn your (home) office desk into an ergonomic environment and reclaim valuable workspace with this Manhattan monitor mount. Since it uses a gas spring to hold your display, this monitor arm only needs a light touch to move your screen to the best viewing angle for you. The single-monitor VESA mount supports 13″ to 27″ displays with a weight capacity up to 6.5 kg (14.3 lbs.). An attractive black finish complements your workspace.
Light-touch height adjustment
A gas-spring cylinder makes it easy to raise or lower the display anywhere from 160 to 410 mm (6.3 to 16.1 in.) so it can sit in the best place for your line of sight. Adjust the tension according to the weight of your monitor to reposition it effortlessly.
Full-motion view optimization
The full-motion arm lets you extend, tilt and swivel across multiple axes, so it’s easy to create an ergonomic workspace that fits your exact needs. You can also rotate your monitor from landscape to portrait orientation to view photos in portrait mode or see longer pages and blocks of code without having to scroll down.
Easy installation
You can either clamp the mount to the side of a desk, table or counter that is 10 to 85 mm (0.4 to 3.3 in.) thick, or you can mount it through a grommet hole that is 10 to 80 mm (0.4 to 3.15 in.) wide. All the hardware you need is included in the box.
Clean cable management
Built-in cable management keeps the cords on your desk tidy and organized.
| Mounting | |
|---|---|
| Grommet mount desk thickness (max) | 8 cm |
| Desk thickness (max) | 8.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Maximum screen size | 68.6 cm (27″) |
| Minimum screen size | 33 cm (13″) |
| Maximum weight capacity | 6.5 kg |
| Ergonomics | |
|---|---|
| Tilt adjustment | Yes |
| Cable management | Yes |
| Angle of rotation | 360° |
| Swivel angle | 180° |
| Tilt angle range | -90 – 90° |
| Height adjustment range | 160 – 410 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Certification | RoHS |
| Orientation | Landscape/Portrait |
| Housing material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Package weight | 2.58 kg |
| Weight | 2.35 kg |
| Height | 592 mm |
| Depth | 470 mm |
| Width | 117 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
