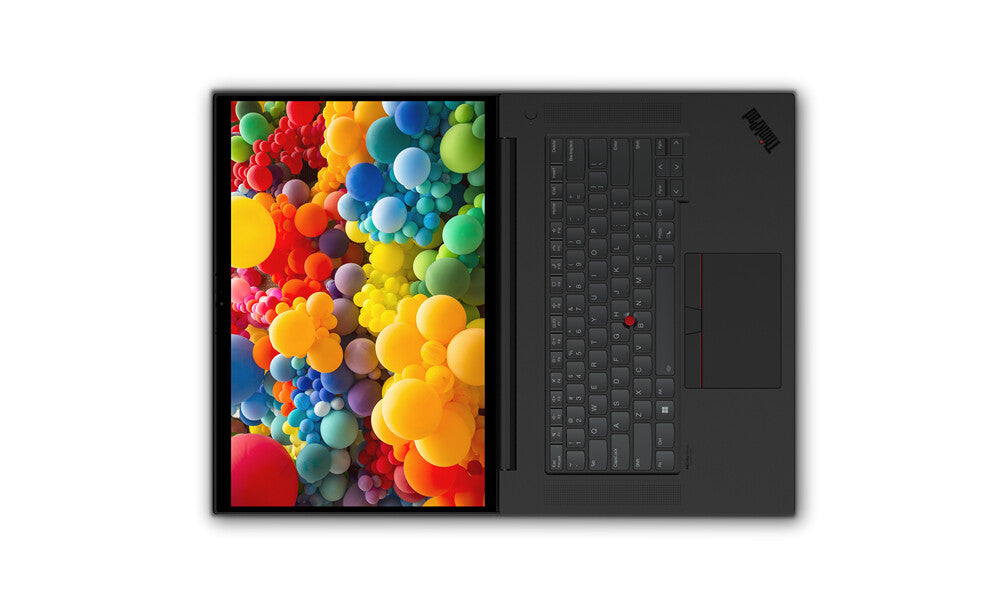

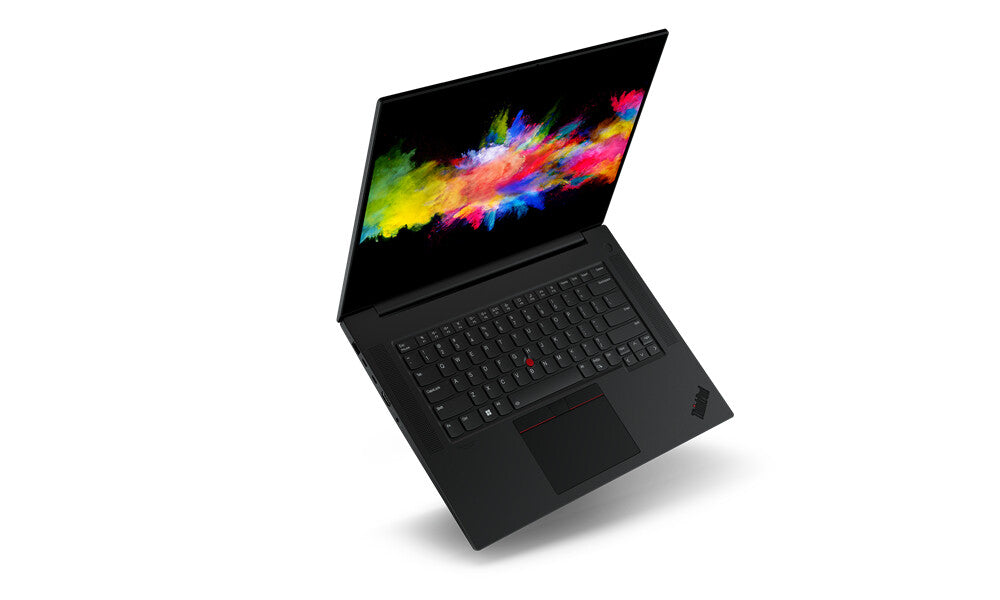

Lenovo ThinkPad P1 Gen 5 Laptop – 40.6 cm (16″) – Intel® Core™ i7-12800H – 32 GB DDR5-SDRAM – 1 TB SSD – NVIDIA RTX A3000 – Wi-Fi 6E – Windows 11 Pro – Black
The power you need, the machine you want
– 16″ powerhouse with low blue light & X-Rite Factory Display Calibration for colour accuracy
– Up to Intel vPro® with 12th Generation Intel® Core™ H Series processors
– Choice of NVIDIA® RTX™ or NVIDIA® GeForce RTX™ graphics
– Carbon-Fiber Weave or Black chassis options
– DDR5 memory & tons of SSD storage for speedy system performance
Premium power
The sleek design of the ThinkPad P1 Gen 5 mobile workstation hints at what’s inside: a powerful system that offers the professional performance of the latest Intel vPro® platform with Core™ H Series processors and graphics support up to NVIDIA® RTX™ A5500 GPU. Combine this with ISV certification by industry leading software vendors and your applications will blaze through heavy workloads.See the complete list of ISV certifications.
Visually stunning
Powerful, mobile, and visually stunning, the P1 Gen 5 mobile workstation is the perfect combination of form and function. A liquid metal thermal design improves cooling performance, while the Carbon-Fiber Weave looks stunning. This device is designed to be taken out into the world.
Content creator’s dream come true
Boasting a 16″ panel, narrow bezel, and a 16:10 aspect ratio for increased screen real estate, the ThinkPad P1 Gen 5 is designed with the modern user in mind. With its low blue light displays, Dolby Vision®, and X-Rite Factory Colour Calibration for crisp, clear images, this device is easy on the eyes.
Keeps your data—& privacy—safe
The ThinkPad P1 Gen 5 laptop starts with our ThinkShield security suite, preloaded to protect your device and your data. From discrete Trusted Platform Module (dTPM) to encrypt your data, to a fingerprint reader with biometrics for a simple touch log in, and a self-healing BIOS that can restore earlier system settings when needed, we’ve got you covered.
Built to withstand the worst
We use the US Department of Defense’s MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
| Design | |
|---|---|
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP), Glass Fibre Reinforced Plastic (GFRP) |
| Form factor | Clamshell |
| Colour name | Black |
| Product colour | Black |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Maximum refresh rate | 165 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Panel type | IPS |
| HD type | WQXGA |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16″) |
| Processor | |
|---|---|
| Configurable TDP-down | 35 W |
| Motherboard chipset | Intel SoC |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor cores | 14 |
| Processor boost frequency | 4.8 GHz |
| Processor model | i7-12800H |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | NVIDIA RTX A3000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Audio system | Dolby Atmos |
| Audio chip | Realtek ALC3306 |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera | Yes |
| Network | |
|---|---|
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2×2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard language | UK English |
| Pointing device | ThinkPad UltraNav |
| Software | |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Processor special features | |
|---|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Battery | |
|---|---|
| Battery capacity | 90 Wh |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| AC adapter power | 230 W |
| Security | |
|---|---|
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 8 – 95% |
| Storage temperature (T-T) | 5 – 43 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Certificates | |
|---|---|
| Certification | EPEAT GoldENERGY STAR 8.0RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
|---|---|
| Height | 17.7 mm |
| Depth | 253.8 mm |
| Width | 359.5 mm |
| Weight | 1.81 kg |
| General | |
|---|---|
| Product Family | ThinkPad |
| Product Series | P |
