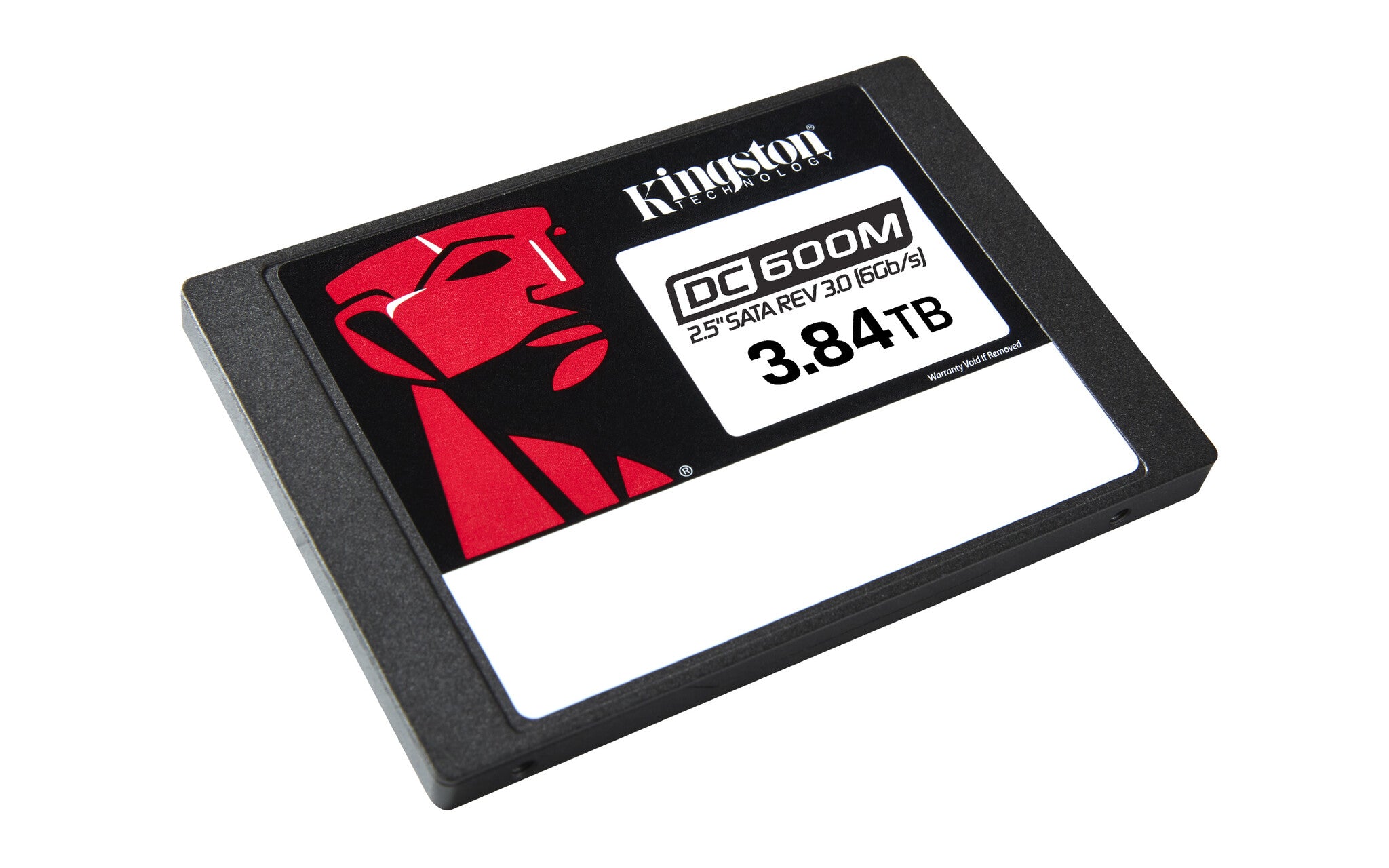

Kingston Technology DC600M – Enterprise SATA 2.5” SSD – 3.84 TB
Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Capacities available from 480GB–7680GB* to meet your data storage requirements.
Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet service-level agreements (SLAs).
Capacities of up to 7680GB
Upgrade and manage storage with capacities of up to 7680GB** .
| Features | |
|---|---|
| Use conditions | Server/Enterprise |
| TBW rating | 7008 |
| Mean time between failures (MTBF) | 2000000 h |
| H/W PLP function | Yes |
| Hot-Plug support | Yes |
| Write latency | 30 µs |
| Read latency | 200 µs |
| Random write (4KB) | 59000 IOPS |
| Random read (4KB) | 94000 IOPS |
| Write speed | 530 MB/s |
| Read speed | 560 MB/s |
| Data transfer rate | 6 Gbit/s |
| Target workload | Mixed Use (MU) |
| Hardware encryption | No |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| Interface | Serial ATA III |
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5″ |
| Power | |
|---|---|
| Power consumption (idle) | 1.3 W |
| Power consumption (max) | 1.45 W |
| Power consumption (write) | 3.6 W |
| Power consumption (read) | 1.6 W |
| Operational conditions | |
|---|---|
| Non-operating vibration | 20 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 71 g |
| Height | 70 mm |
| Depth | 100.1 mm |
| Width | 69.9 mm |
| Packaging data | |
|---|---|
| Package weight | 93.2 g |
| Package height | 184.2 mm |
| Package depth | 9.1 mm |
| Package width | 129.5 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 1.01 kg |
| Master (outer) case height | 69.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case width | 135.9 mm |
| Country of origin | China, Taiwan |
- Enterprise-class mixed-use SSD with power loss protection
