Integral V Series 1TB SATA III 2.5 Inch Internal SSD, up to 520MB/s Read, 470MB/s Write
General |
|
|---|---|
| Device Type | Solid state drive – internal |
| Capacity | 1 TB |
| Form Factor | 2.5″ |
| Interface | SATA 6Gb/s |
| Features | Shock resistant, Wear Leveling Support, Ultra-efficient Block Management, Non-volatile Flash Memory, S.M.A.R.T. |
| Model | INSSD1TS625V2X |

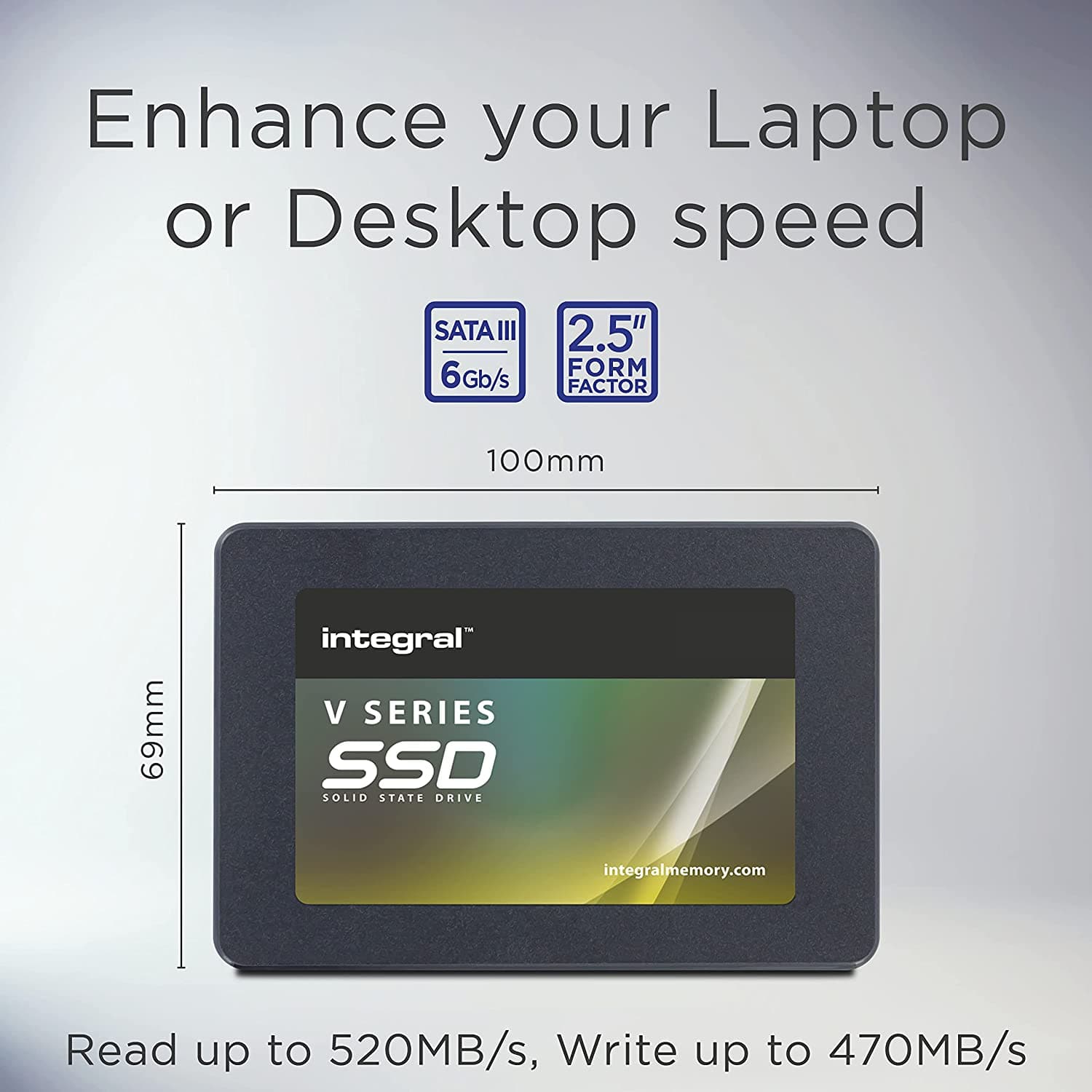

| Width | 69.85 mm |
| Depth | 100.18 mm |
| Height | 7 mm |
| Weight | 45 g |
| EAN | 5055288447240 |
Performance |
|
| SSD Endurance | 320 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 520 MBps (read) / 470 MBps (write) |
Reliability |
|
| MTBF | 1,500,000 hours |
Expansion & Connectivity |
|
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5″ |
Power |
|
| Power Consumption | 1650 mW (read) ¦ 1800 mW (write) ¦ 475 mW (idle) |
Miscellaneous |
|
| Compliant Standards | FCC, RoHS, UKCA |
Environmental Parameters |
|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 – 95% |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine wave |
| Vibration Tolerance (operating) | 3.08 g @ 7-800 Hz |
