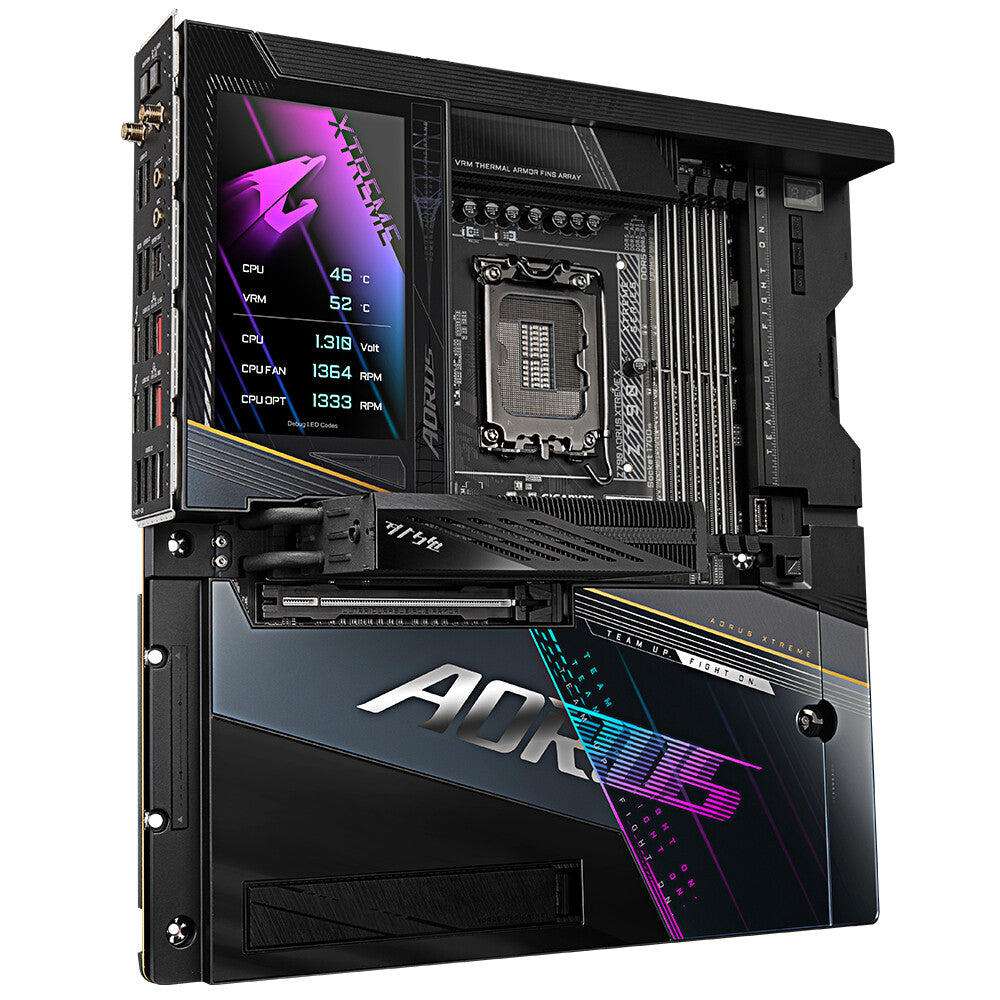

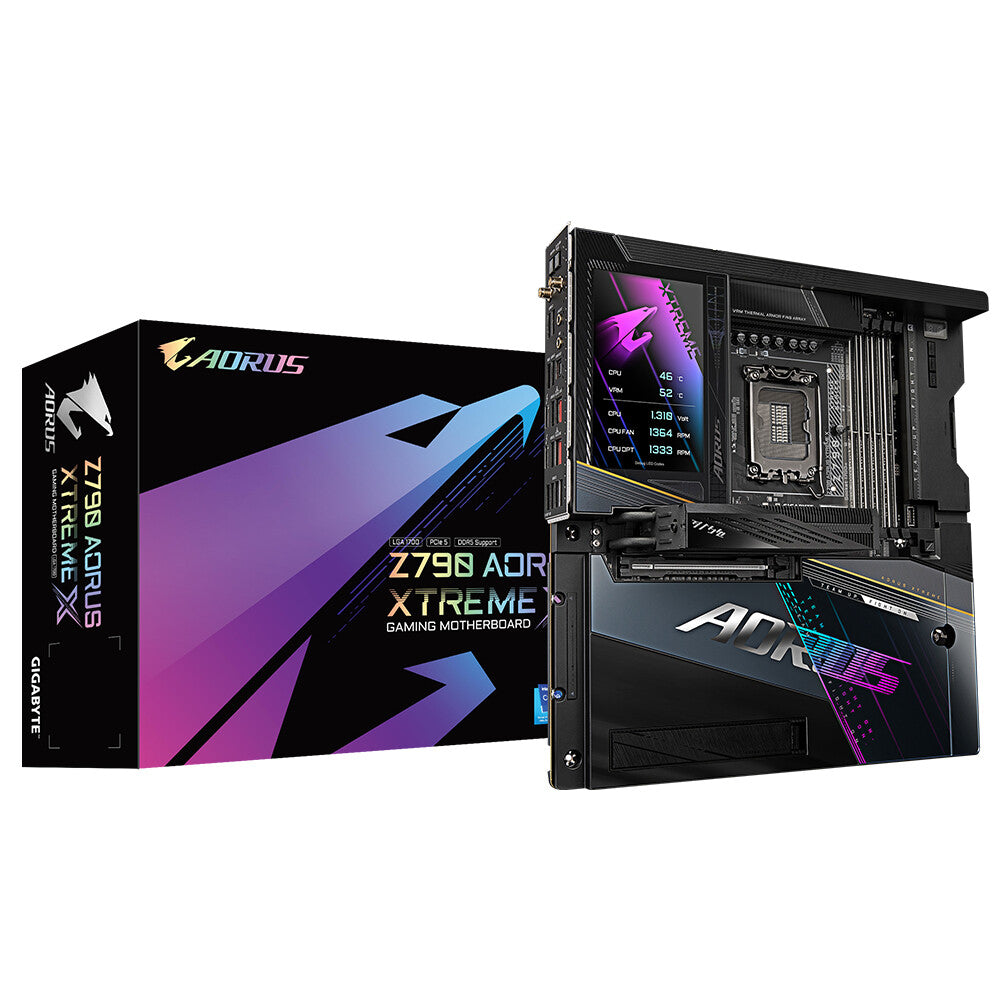

Gigabyte Z790 AORUS XTREME X E-ATX motherboard – Intel Z790 LGA 1700
Intel Z790, 4 x DDR5, 8266 MHz, Wi-Fi 7, 2 x RJ-45, 4 x SATA, E-ATX
Introducing the GIGABYTE Z790 AORUS XTREME X Motherboard, meticulously designed for gaming and content creation. The motherboard supports the 13th Gen and the next-gen Intel Core processors, featuring an LGA 1700 socket. It delivers an advanced VRM design, efficient thermal management, PCIe 5.0 support, seamless DDR5 compatibility, and EZ-latch features for screwless installments. With its cutting-edge technology and user-friendly design, the Z790 AORUS XTREME X sets new standards for high-performance computing, ensuring optimal performance and easy maintenance for PC enthusiasts.
| Processor |
| Supported processor sockets |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
8266 MHz |
| Supported memory clock speeds |
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
9 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| DirectX version |
12.0 |
| HDCP |
Yes |
| Maximum resolution |
5120 x 2880 pixels |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| Thunderbolt headers |
2 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
3 |
| CPU fan connector |
Yes |
| Number of EATX power connectors |
2 |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2×2 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| USB connector type |
USB Type-A, USB Type-C |
| WiFi-AP antenna jack |
2 |
| Thunderbolt ports quantity |
2 |
| Digital audio optical out |
1 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
10 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| WLAN controller model |
Qualcomm QCNCM865 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| LAN controller |
Aquantia AQC107 |
| Ethernet interface type |
2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 x64 |
| PC health monitoring |
Fan, Noise, Temperature, Voltage, Water cooling |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
ESS ES9280AC + ESS ES9080 |
| Motherboard chipset |
Intel Z790 Express |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
Extended ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
5 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| BIOS |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
| Country of origin |
Taiwan |
| Products per shipping (inner) case |
1 pc(s) |
| Packaging data |
| Package weight |
5.07 kg |
| Package height |
130 mm |
| Package depth |
332 mm |
| Package width |
380 mm |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
285 mm |
| Width |
305 mm |
| Packaging content |
| Bundled software |
Norton® Internet Security (OEM version)LAN bandwidth management software |
| Cables included |
SATA |
| Batteries included |
Yes |
| Antenna included |
Yes |
| Technical details |
| Warranty period |
3 year(s) |
