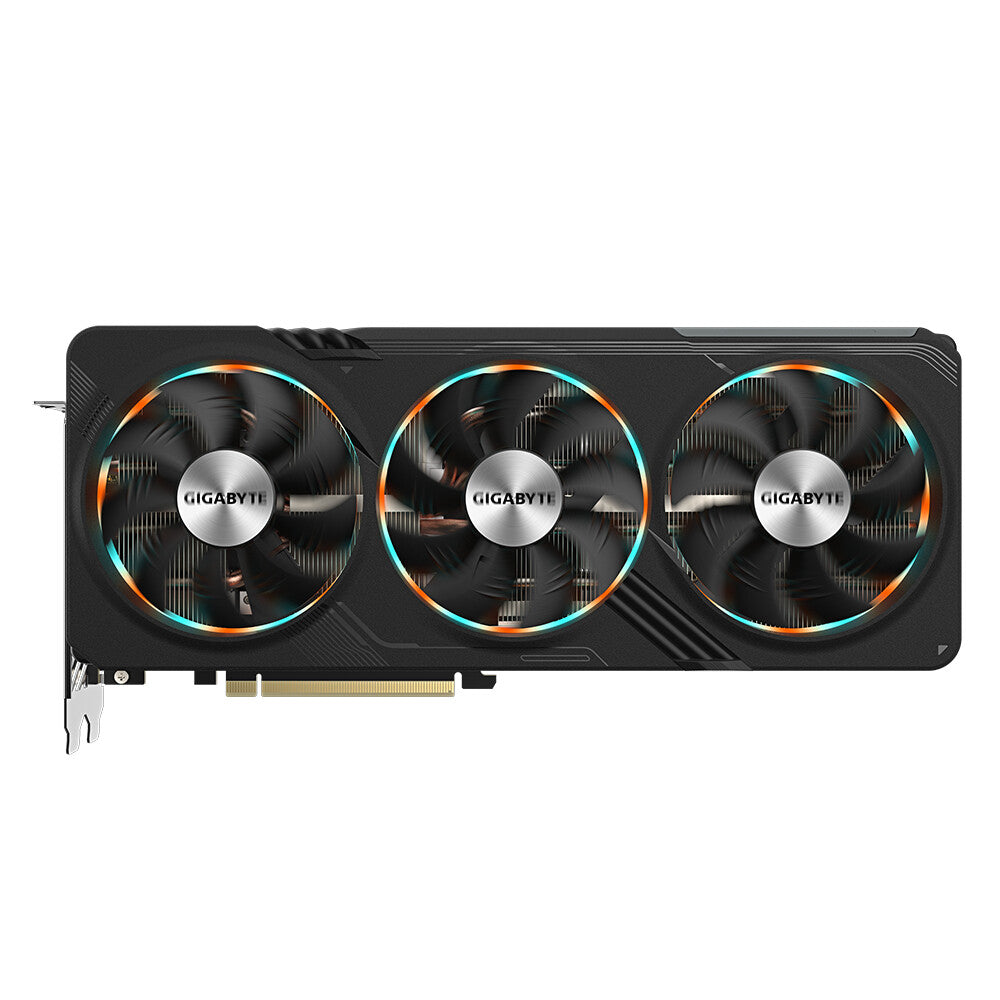

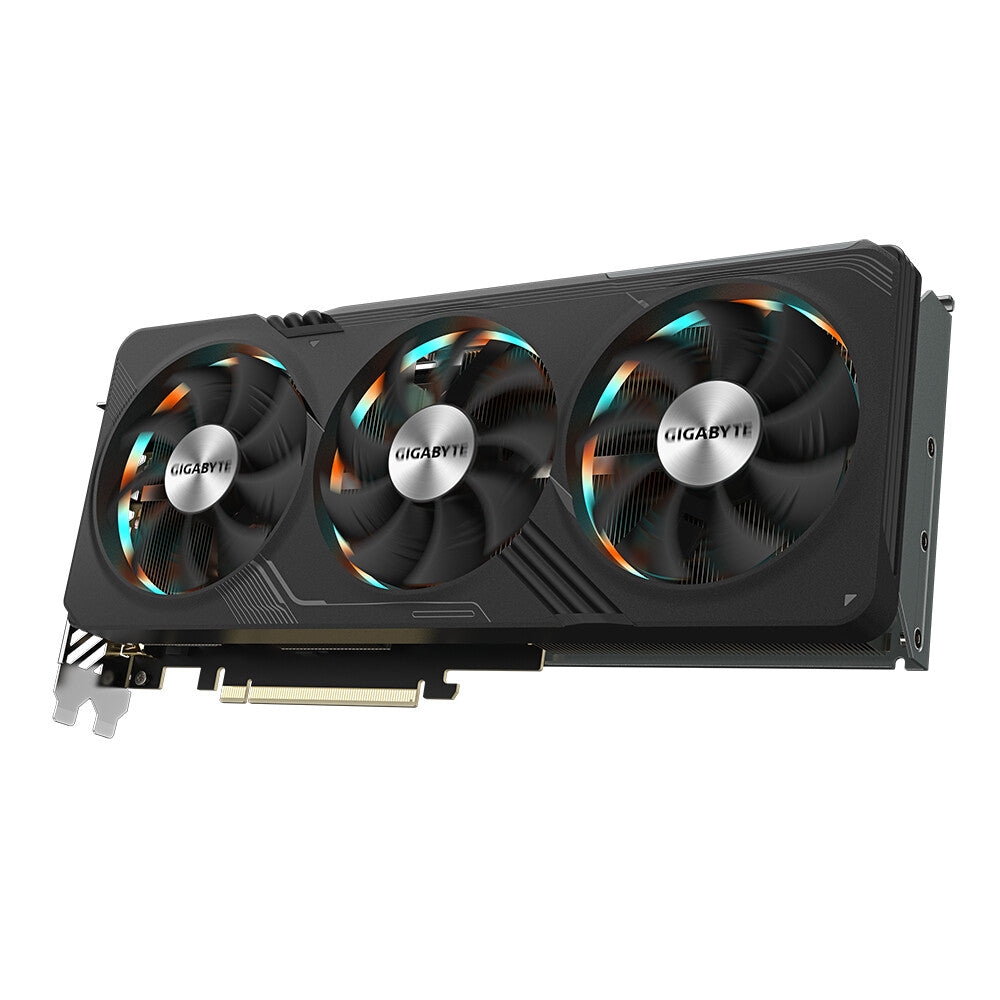

Gigabyte GAMING OC V2 – NVIDIA 12 GB GDDR6X GeForce RTX 4070 graphics card
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor frequency | 2565 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 21 Gbit/s |
| Number of pipelines | 4 |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Discrete graphics card memory | 12 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1a |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA G-SYNC | Yes |
| NVIDIA 3D Vision | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Fan diameter | 9 cm |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 650 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 300 mm |
| Height | 50.2 mm |
| Width | 130 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| User guide | Yes |
