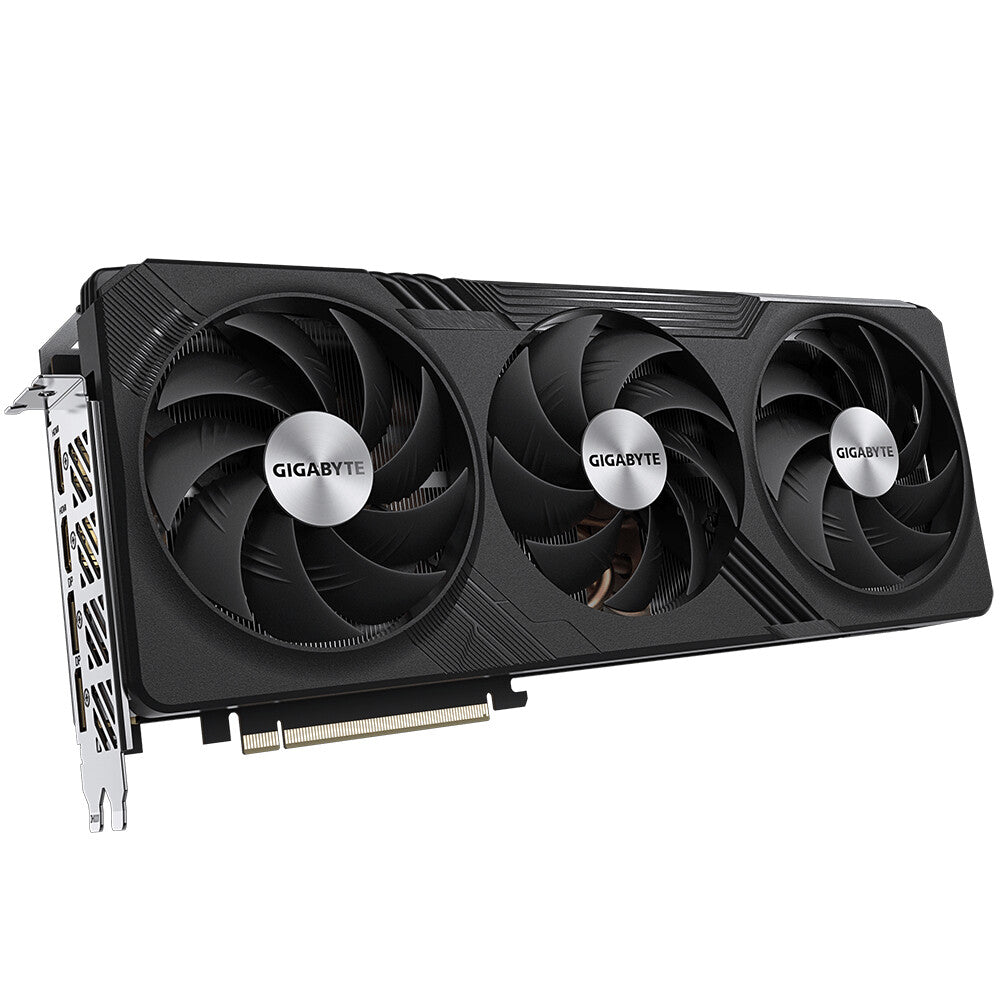

GIGABYTE GAMING OC – AMD 24 GB GDDR6 Radeon RX 7900 XTX graphics card
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIAL
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ANTI-SAG BRACKET
The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
| Processor | |
|---|---|
| Stream processors | 6144 |
| Maximum displays per videocard | 4 |
| Processor boost clock speed | 2525 MHz |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 7900 XTX |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 20 Gbit/s |
| Number of pipelines | 9 |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 24 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| AMD FreeSync | Yes |
| Dual Link DVI | No |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black |
| Illumination | Yes |
| Illumination colour | Multi |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Fan diameter | 10 cm |
| Number of fans | 3 fan(s) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 850 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| General | |
|---|---|
| Product Family | GAMING |
| Weight & dimensions | |
|---|---|
| Depth | 50 mm |
| Height | 138 mm |
| Length | 331 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| User guide | Yes |
