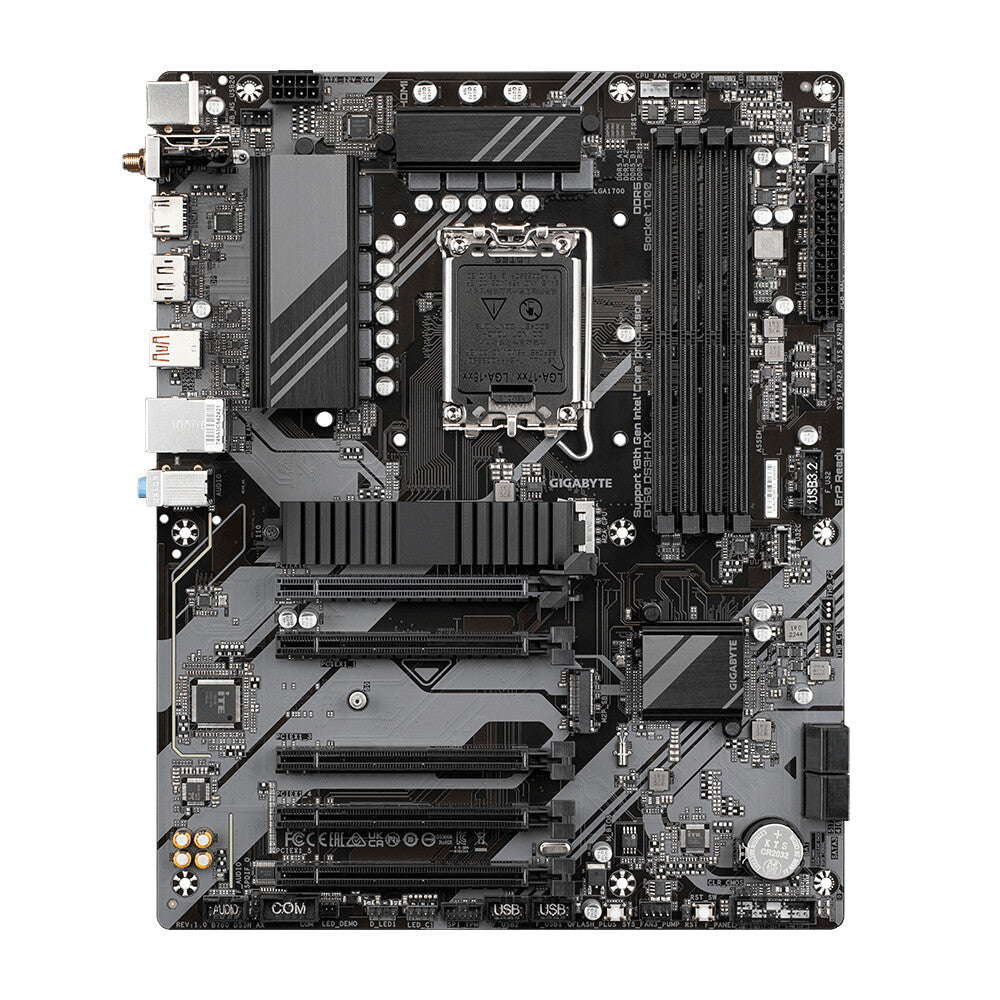

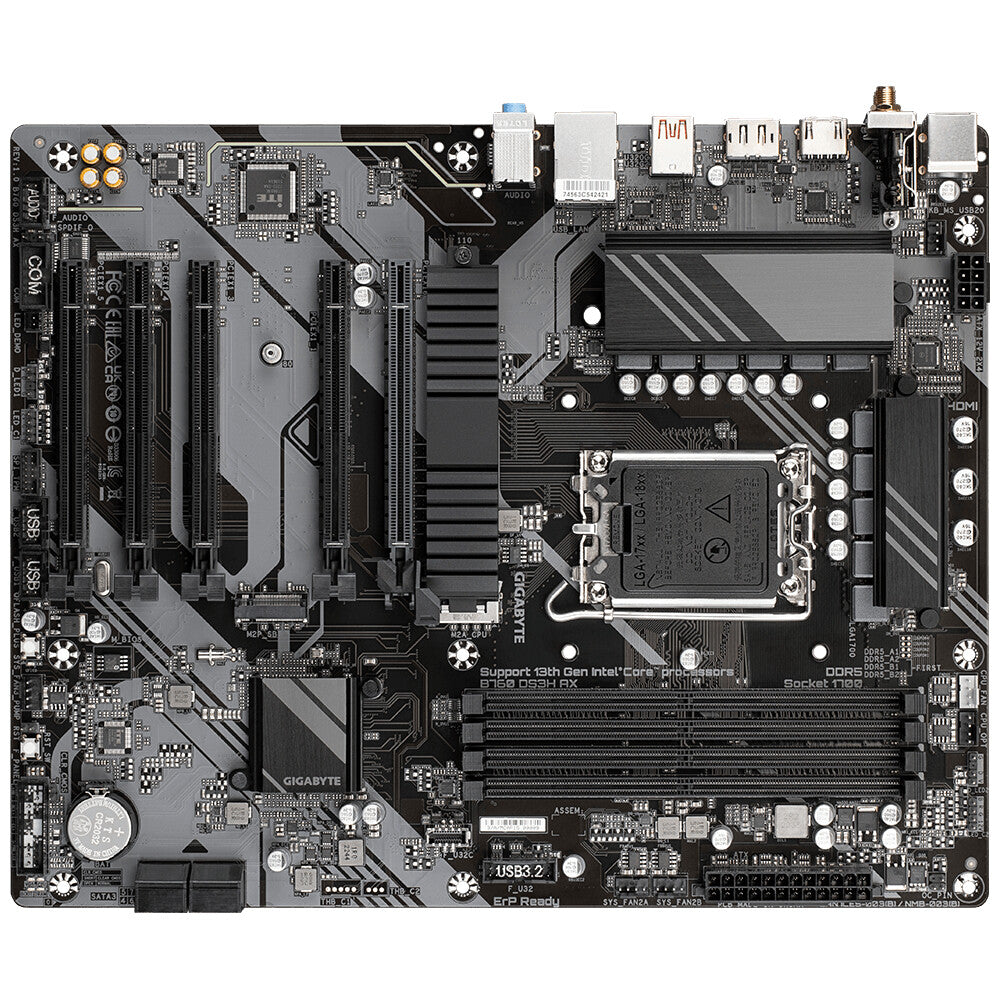

Gigabyte B760 DS3H AX ATX motherboard – Intel B760 Express LGA 1700

ATX, LGA 1700 socket, Intel B760 Express chipset, 4x DDR5 DIMM, Wi-Fi 6E, Bluetooth 5.3, AMI UEFI BIOS

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Processor
Maximum internal memory supported by processor	192 GB
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket	LGA 1700
Processor manufacturer	Intel

Memory
Unbuffered memory	Yes
Maximum internal memory	192 GB
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speed (max)	7600 MHz
Supported memory clock speeds	4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Non-ECC	Yes
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM

Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of HDDs supported	4
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD

Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported

Internal I/O
RGB LED pin header	Yes
Serial port headers	1
TPM connector	Yes
12V power connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
S/PDIF out connector	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	2

Rear panel I/O ports
USB connector type	USB Type-A, USB Type-C
WiFi-AP antenna jack	2
Microphone in	Yes
Headphone outputs	3
DisplayPort version	1.2
DisplayPorts quantity	1
HDMI version	2.0
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2×2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 2.0 ports quantity	4

Network
Bluetooth version	5.3
Bluetooth	Yes
WLAN controller model	Realtek RTL8852CE
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power source type	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Product colour	Brown
Audio output channels	7.1 channels
Motherboard chipset	Intel B760 Express
Motherboard chipset family	Intel
Motherboard form factor	ATX
Component for	PC

Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 slots	5

BIOS
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Clear CMOS jumper	Yes
ACPI version	5.0
BIOS memory size	128 Mbit
BIOS type	UEFI AMI

Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)

Packaging data
Package weight	1.34 kg
Package height	80 mm
Package depth	270 mm
Package width	335 mm

Battery
Battery type	CR2032
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3 g
Lithium weight per battery	0.07 g

Weight & dimensions
Height	35 mm
Depth	244 mm
Width	305 mm

Packaging content
Bundled software	Norton Internet Security
Cables included	SATA
Batteries included	Yes

Technical details
Warranty period	3 year(s)
