Fractal Design Ion+ 2 – 760W 80+ Platinum Fully Modular Power Supply Unit
80 PLUS® Platinum certified
80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
Supports the latest ATX 2.52 standard with improved start-up time and transient load response
Great electrical output quality with tight voltage regulation and low ripple and noise
Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability
Fully modular design
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new otherboards
Premium storage bags for cables and PSU
Custom-tailored fan

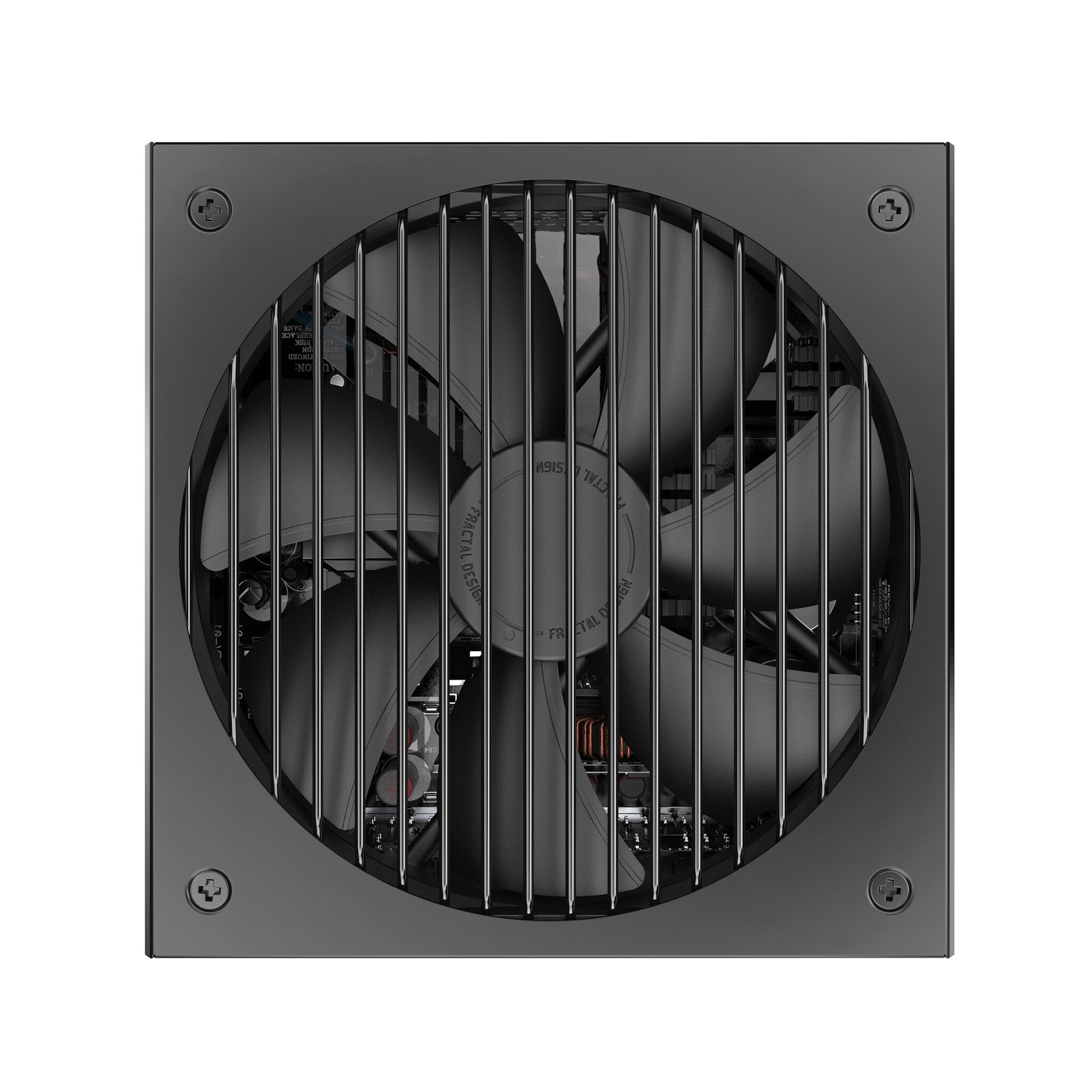

Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
Compact advantages
Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Semi-passive mode
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under power |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 22 A |
| Max output current (+12V) | 63.3 A |
| Max output current (+3.3V) | 22 A |
| Combined power (+5V) | 120 W |
| Combined power (+3.3V) | 120 W |
| Input current | 10/5 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 760 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Peripheral (Molex) power cable length | 150,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 150,400,650 mm |
| Number of SATA power connectors | 10 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Certification | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| EPS version | 2.92 |
| ATX version | 2.52 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Fan diameter | 14 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.53 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.06 kg |
| Package height | 110 mm |
| Package depth | 325 mm |
| Package width | 210 mm |
