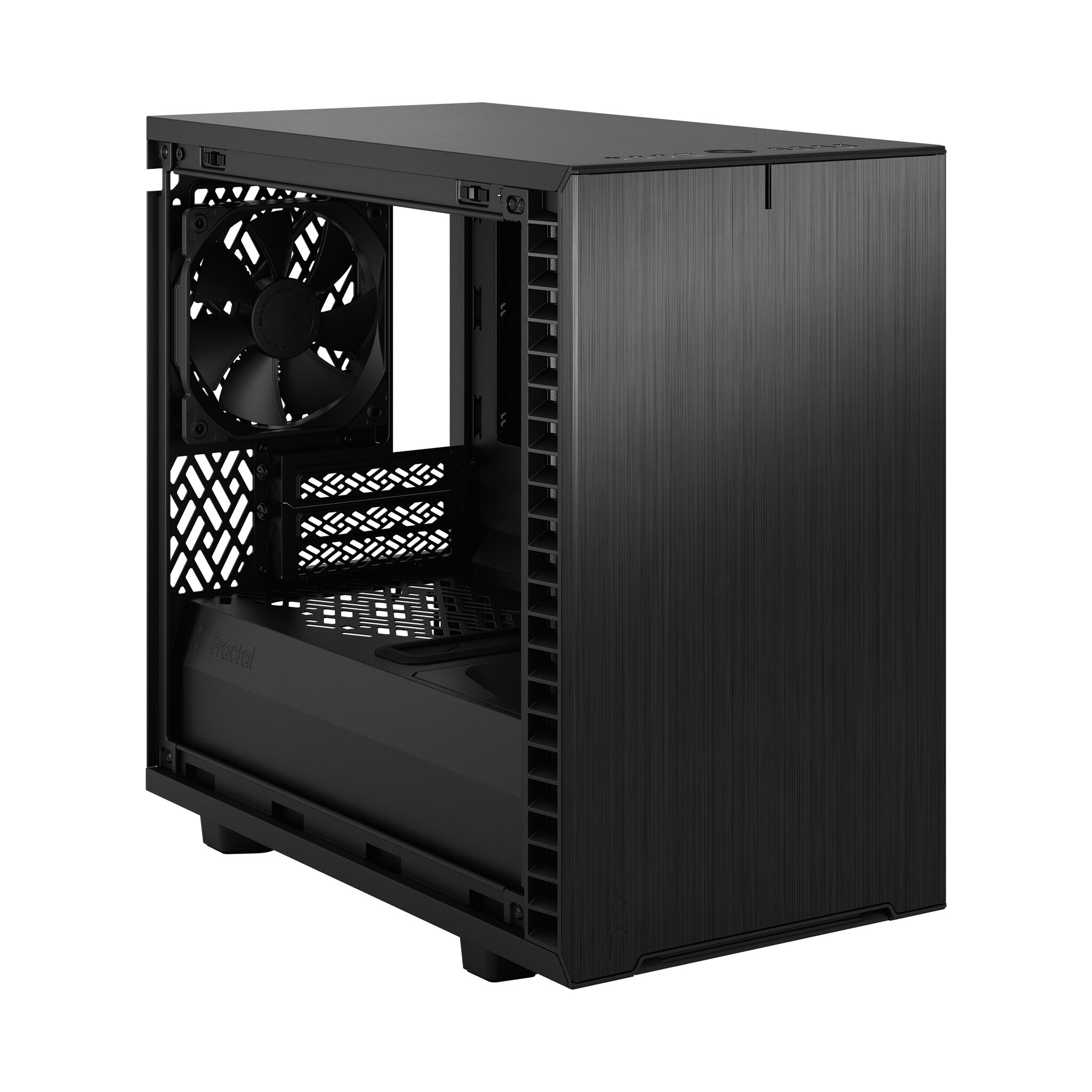

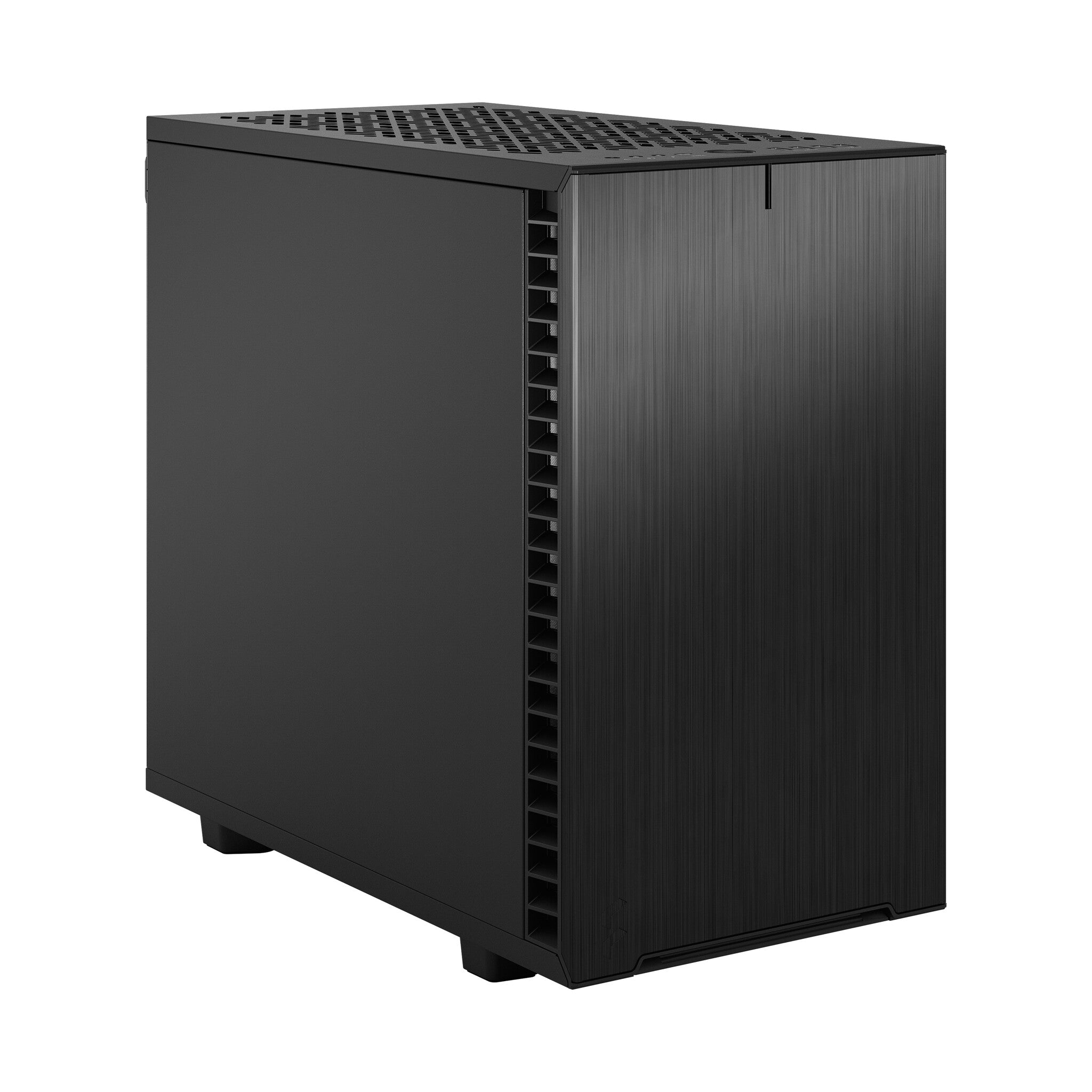

Fractal Design Define 7 Nano – Mini-ITX Tower Case in Black
Mini ITX/Mini-DTX, Steel, USB 3.1 Gen 2 Type-C/2x USB 3.0/2x USB 2.0/Audio
Superior airflow
The open interior layout creates a smooth airflow path from intake to rear exhaust
Guided airflow
– Two-part modular air duct for increased GPU airflow
– Bridgeless PCI expansion slots ensure unrestricted GPU exhaust
Removable top bracket
Our new removable top bracket fully exposes case interior for effortless installation and cable routing
Type-C interface
Five front USB ports including one USB Type-C with fast charging support and speeds up to 10Gbps
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
33.1 cm |
| Maximum CPU cooler height |
16.7 cm |
| On/off button |
Yes |
| Reset button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Number of expansion slots |
2 |
| Number of 2.5″ bays |
3 |
| Number of 3.5″ bays |
1 |
| Supported motherboard form factors |
Mini-DTX, Mini-ITX |
| Product colour |
Black |
| Material |
Steel |
| Type |
PC |
| Power supply |
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Cooling |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140,240,280 mm |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
1 |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
2 |
| Front fans installed |
1x 140 mm |
| Storage |
| SSD form factor |
2.5″ |
| Supported HDD sizes |
2.5,3.5″ |
| Packaging content |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
7.2 kg |
| Height |
361 mm |
| Depth |
399 mm |
| Width |
205 mm |
| Packaging data |
| Package weight |
8.6 kg |
| Package height |
471 mm |
| Package depth |
417 mm |
| Package width |
277 mm |
