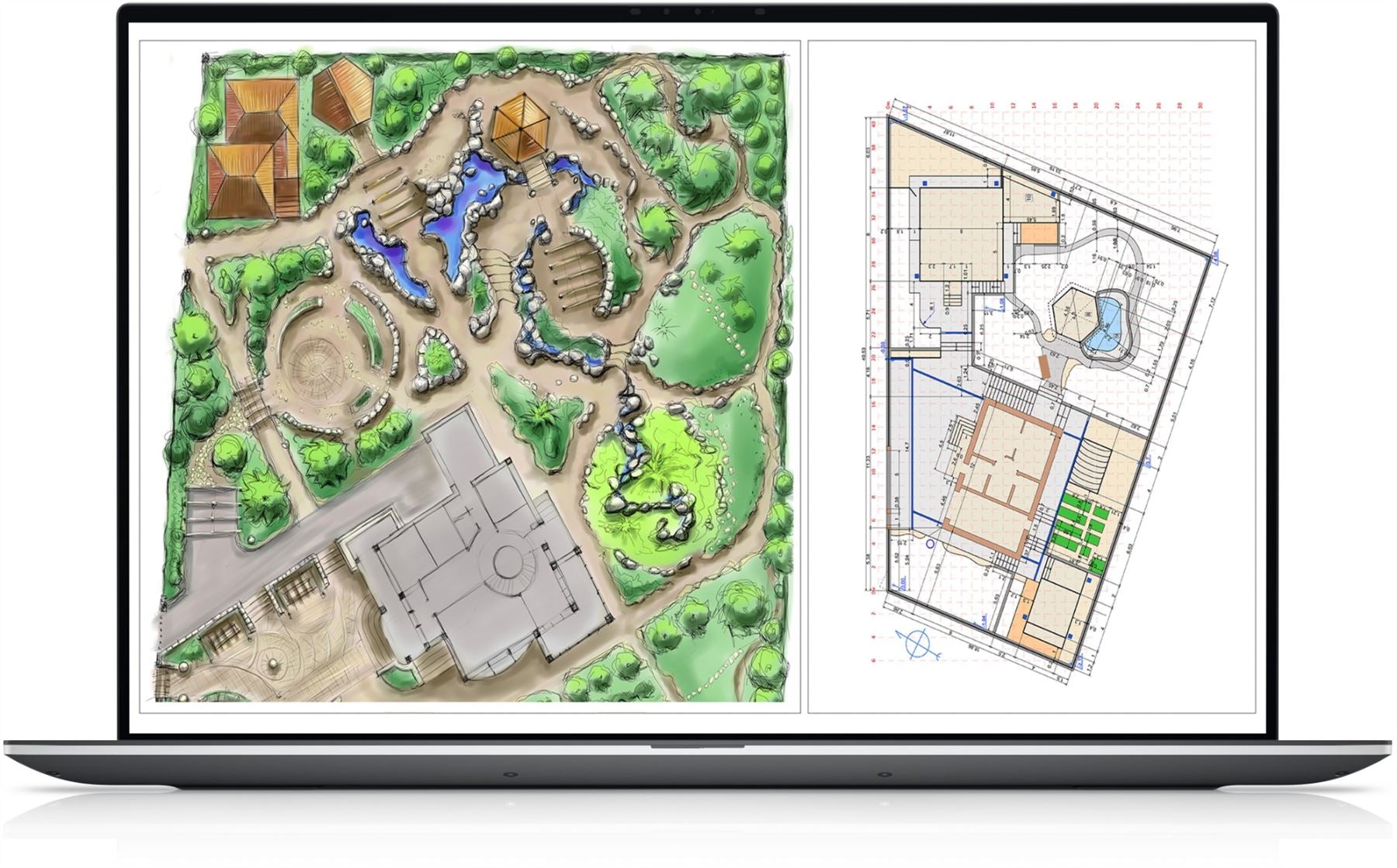

DELL Precision 5770 i7-12800H Mobile workstation 43.2 cm (17″) Touchscreen UHD+ Intel Core i7 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A3000 W
DELL Precision 5770 i7-12800H Mobile workstation 43.2 cm (17″) Touchscreen UHD+ Intel Core i7 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A3000 W
Key Features
- Model: Intel Core i7
- Operating System: Windows 10 Pro
- Display Size: 17 Inch
- Display Resolution: 3840 x 2400
- Internal Storage: 512GB
- Colour: Grey
Overview
Performance and elegance collide 17″ workstation with 4-sided InfinityEdge display, Dell Optimizer for Precision, up to 12th Gen Intel Core i9 and NVIDIA RTX A3000 graphics.
| Design | |
|---|---|
| Product type | Mobile workstation |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Intel vPro Platform Eligibility | Yes |
| Display | |
| HD type | UHD+ |
| Pixel density | 266 ppi |
| Panel type | WVA |
| LED backlight | Yes |
| Display brightness | 500 cd/m� |
| Contrast ratio (typical) | 1600:1 |
| Touchscreen | Yes |
| Display resolution | 3840 x 2400 pixels |
| Display diagonal | 43.2 cm (17″) |
| Maximum refresh rate | 60 Hz |
| RGB colour space | DCI-P3 |
| Colour gamut | 99% |
| Native aspect ratio | 16:10 |
| Processor | |
| Configurable TDP-down | 35 W |
| Processor cache | 24 MB |
| Processor model | i7-12800H |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC, SD, SDHC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 12 GB |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | NVIDIA RTX A3000 |
| Discrete graphics memory type | GDDR6 |
| Audio | |
| Audio chip | Realtek ALC711-CG |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 0.9 MP |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Front camera HD type | HD |
| Infrared (IR) camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2×2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery | Yes |
| Charging port type | USB Type-C |
| Thunderbolt 4 ports quantity | 4 |
| Intel Thunderbolt 4 | Yes |
| Performance | |
| Proximity sensor | Yes |
| Ambient light sensor | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard number of keys | 80 |
| Keyboard backlit | Yes |
| Keyboard language | UK International |
| Software | |
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Trial software | No Microsoft Office License Included 30 day |
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Technical details | |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Grey |
| Discrete graphics card memory | 12 GB |
| Processor special features | |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel vPro Platform Eligibility | Yes |
| Battery | |
| Number of battery cells | 6 |
| Battery capacity | 97 Wh |
| Battery recharge time | 4 h |
| Battery voltage | 11.4 V |
| Fast charging | Yes |
| Battery weight | 385 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter input voltage | 100 – 240 V |
| USB charging voltage | 20,5 V |
| USB charging current | 6.5 A |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 35 �C |
| Storage temperature (T-T) | -40 – 65 �C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | -15.2 – 3048 m |
| Non-operating altitude | -15.2 – 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 374.5 mm |
| Depth | 248.1 mm |
| Height (front) | 8.67 mm |
| Height (rear) | 1.31 cm |
| Weight | 2.57 kg |
| Packaging data | |
| Package weight | 5.24 kg |
| Package width | 455.7 mm |
| Package height | 326.5 mm |
| Package depth | 138 mm |
| Cables included | AC |
| Other features | |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Ambient light sensor | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| On-board graphics card | Yes |
| Harmonized System (HS) code | 84713000 |
| Sensors | |
| Proximity sensor | Yes |
| Ambient light sensor | Yes |
| Packaging content | |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
