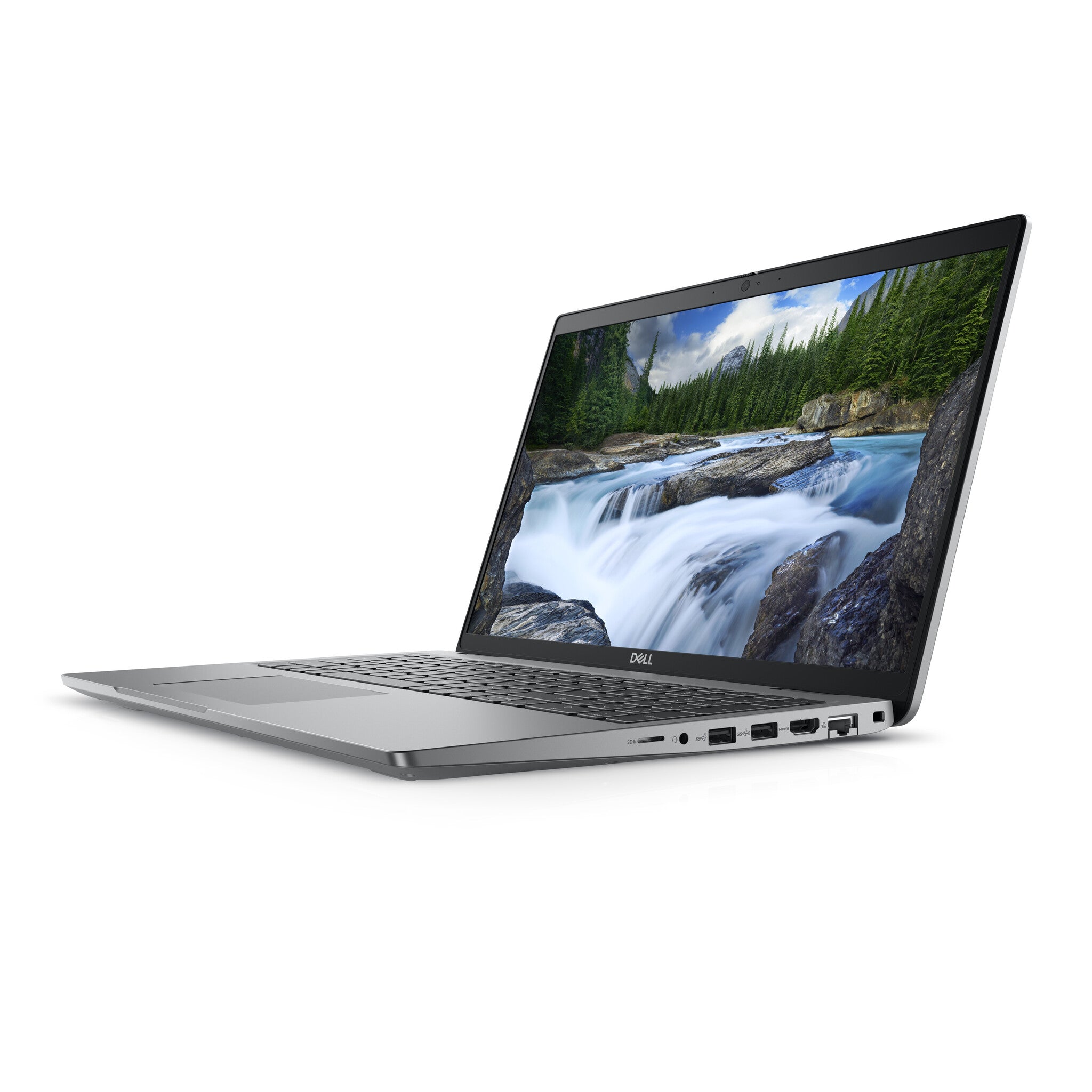

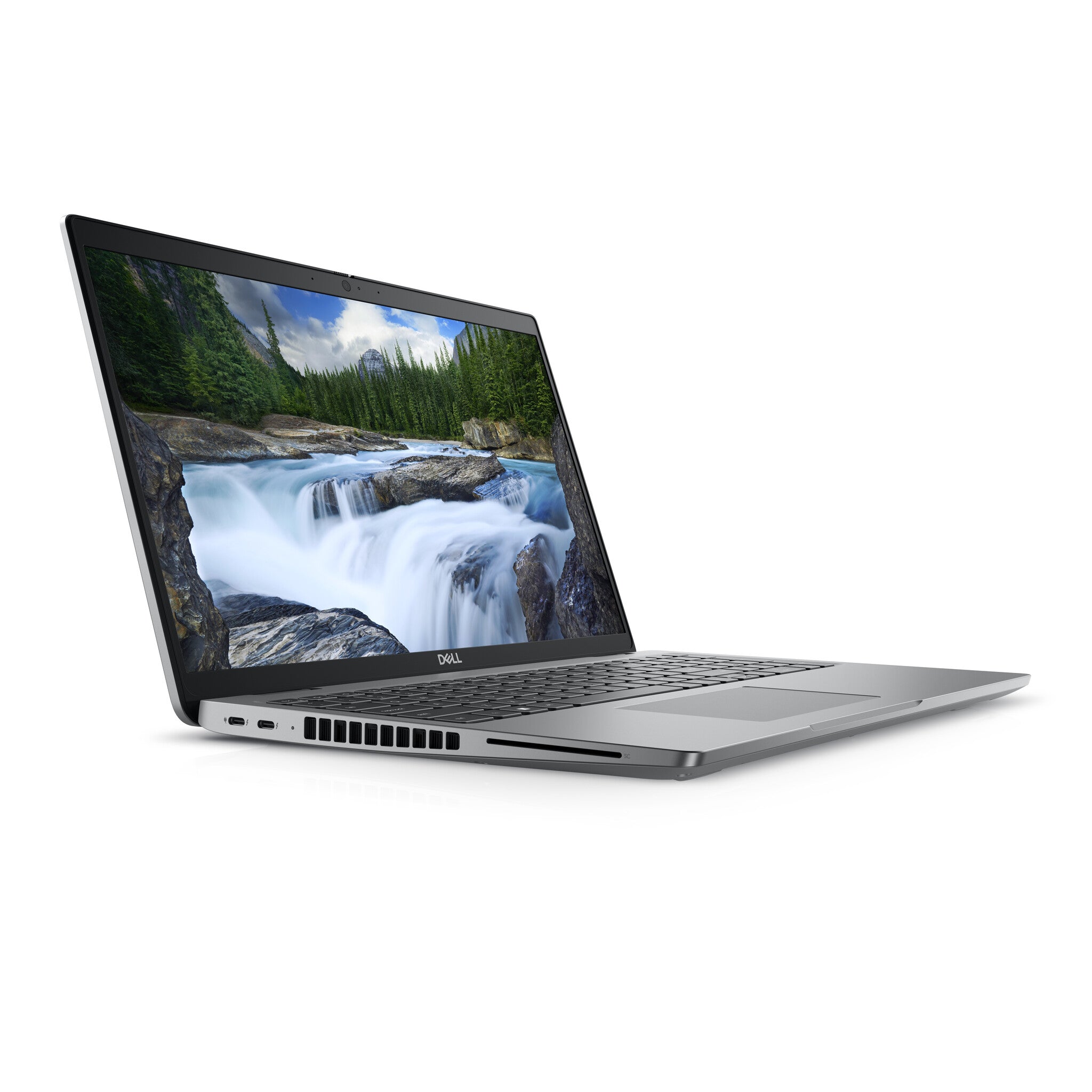

DELL Latitude 5540 Laptop – 39.6 cm (15.6″) – Intel® Core™ i5-1345U – 16 GB DDR4-SDRAM – 512 GB SSD – Wi-Fi 6E – Windows 11 Pro – Grey
Work from anywhere with the world’s most intelligent and secure business laptops sustainably designed for productivity on the go.
Maximum performance and scalability
Enable maximum productivity in more places and additional built-in hardware security with Intel vPro®, running on 13th Gen Intel® Core™ U-series or P-series processorsFast response time and improved performance with optional DDR5 memory up to 64GB
Advanced thermals with new larger fans that keep your device cool and quiet
NVIDIA® MX550 discrete graphic card options accelerate your laptop performanceNext-gen batteries with ExpressCharge analyze usage to extend run time and charge faster when you need a boost in power. Advanced Charge prevents overcharging to extend battery life
Ultimate security to work from anywhere
The industry’s most secure commercial PCs offering Dell Safe ID, Dell SafeBIOS, fingerprint readers, TPM chip and lock slot options are tested and pass MIL-STD 810H testsIntelligent privacy features from Dell Optimizer help keep sensitive data private
Onlooker detection notifies you when someone is peering at your screen and will texturize your screenLook Away Detect knows when your focus is elsewhere and dims to further protect privacy and save battery lifeExpressSign-in detects your presence and wakes up your system and locks your PC when you walk away
Innovating with sustainability
Our most sustainable commercial PC developed with 64% more recycled and renewable plastics by weight than our previous generation models Made with 18% recycled and renewable plastic
100% recycled and renewable packaging with multipack options for even less wasteInnovative use of bio-based, ocean-bound and post-consumer recycled plastics throughout your device
Created for combining forces
Intelligent audio removes background noise on both ends of the call, while Voice Quality Monitoring hones in on the speakerEnhanced FHD+IR camera developed to reflect and accentuate your reality with picture-perfect accuracy
Work from anywhere with outstanding battery life and choice of various battery options up to 54Whr
Experience uncompromised connectivity
Available Wi-Fi 6E and 4G LTE or 5G options make sure you’re always connected at the industry’s fastest speedsExpressConnect joins the best available network, prioritizes conferencing apps and delivers fast data and video downloads with the world’s first simultaneous multi-network connectionQuickly connect to peripherals with a broad range of ports including 2x USB Type C Thunderbolt™ 4.0 and HDMI 2.0
Work with incredible views
Optimized 16:9 screen with optional battery saving and low blue light display to maximize performance and keep your eyes comfortableWide array of panel choices including optional FHD Non-Touch 400 nit panel and FHD Touch 250 nit panel
New premium clickpad with improved size, feel, noise for better productivity
Dell Optimiser
Intelligence built around you – Automatically personalise and boost the performance of your Latitude and its entire ecosystem with Dell Optimiser, an AI-based optimisation software that learns and responds to the way you work
Personalised Performance – From pairing to charging, intelligence and machine learning elevate productivity by automating performance features across your entire ecosystem
Intelligent Collaboration – Get Dell’s most intelligent collaboration experience with smart audio conferencing, connectivity and productivity features all in one software
Safe, Secure and Manageable – With Dell Optimiser, optimisation and data collection follow a stringent process to ensure your privacy and security, designed to improve your PC experience continually. With modular installation, easily set up and customise Dell Optimiser features
Modern Workforce Solutions
Accelerate anywhere work experiences by modernizing how you deploy, manage and support devices with PC as a Service. Leverage both the built-in protections of the industry’s most secure commercial PCs and software protections for advanced threats to help ensure a trusted workspace under a predictable price per month.
Windows 11 Pro – designed for hybrid work.
The most productive and secure version of Windows yet—but simple for IT.
ProSupport
Get 24×7 proactive, automated support and onsite service when you need it with Dell ProSupport. Let our team give you back valuable time so you can take care of business.
ProSupport Plus
Get anytime priority access to expert support with AI-driven predictive analytics and Accidental Damage Service to protect against drops, spills, surges and more.
| Design | |
|---|---|
| Intel® vPro™ Platform Eligibility | Yes |
| Form factor | Clamshell |
| Product colour | Grey |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Display response rise/fall | 35 ms |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Pixel pitch | 0.179 x 0.179 mm |
| Pixel density | 141 ppi |
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6″) |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor cores | 10 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor threads | 12 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor model | i5-1345U |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD performance class | 35 |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Number of built-in speakers | 2 |
| Audio system | MaxxAudio |
| Camera | |
|---|---|
| Privacy type | Privacy shutter |
| Privacy camera | Yes |
| Infrared (IR) camera | Yes |
| Video capturing speed | 30 fps |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera | Yes |
| Network | |
|---|---|
| WWAN | Upgradable |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2×2 |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Charging port type | USB Type-C |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Ambient light sensor | Yes |
| Keyboard | |
|---|---|
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard language | UK English |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Bundled software | Windows System Driver |
| Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Battery | |
|---|---|
| Battery weight | 220 g |
| Fast charging | Yes |
| Battery voltage | 11.4 V |
| Battery capacity | 54 Wh |
| Number of battery cells | 3 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| USB charging current | 3.25 A |
| USB charging voltage | 20,5,9,15 V |
| AC adapter input voltage | 100 – 200 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter power | 65 W |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Cable lock slot type | Wedge |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Non-operating vibration | 1.3 G |
| Operating vibration | 0.66 G |
| Non-operating shock | 160 G |
| Operating shock | 110 G |
| Non-operating altitude | -15.2 – 10668 m |
| Operating altitude | -15.2 – 3048 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 0 – 35 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | TCO |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.28 cm |
| Height (front) | 2.08 cm |
| Depth | 233.3 mm |
| Width | 357.8 mm |
| Weight | 1.61 kg |
| General | |
|---|---|
| Product Family | Latitude |
| Product Series | 5000 |
