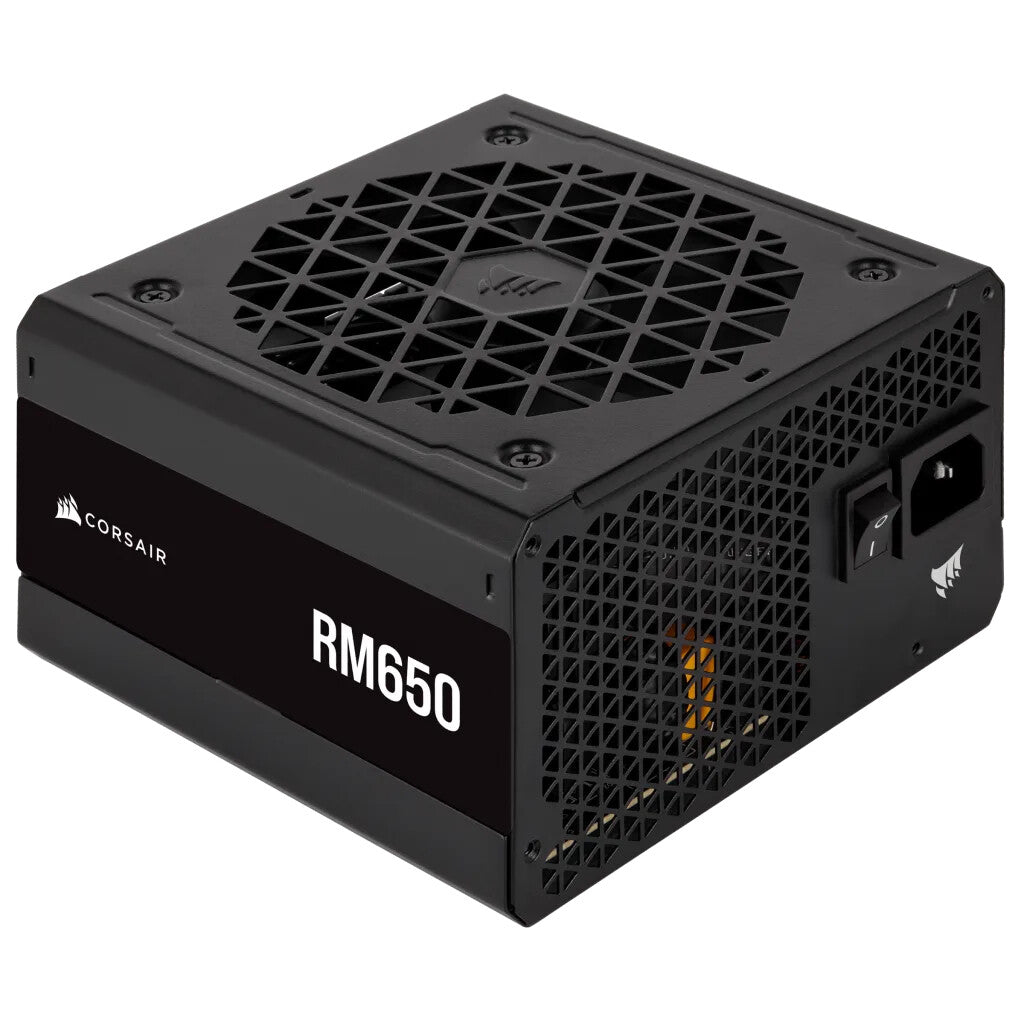

Corsair RM650 – 650W 80+ Gold Fully Modular Power Supply Unit
FULLY MODULARCABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Four universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RM supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
| Power | |
|---|---|
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+3.3V) | 110 W |
| Input current | 10 – 5 A |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 650 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| SATA power cable length | 100,500 mm |
| Number of SATA power connectors | 7 |
| Number of PATA power connectors | 4 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.53 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 2.26 kg |
| Height | 86 mm |
| Depth | 140 mm |
| Width | 150 mm |
