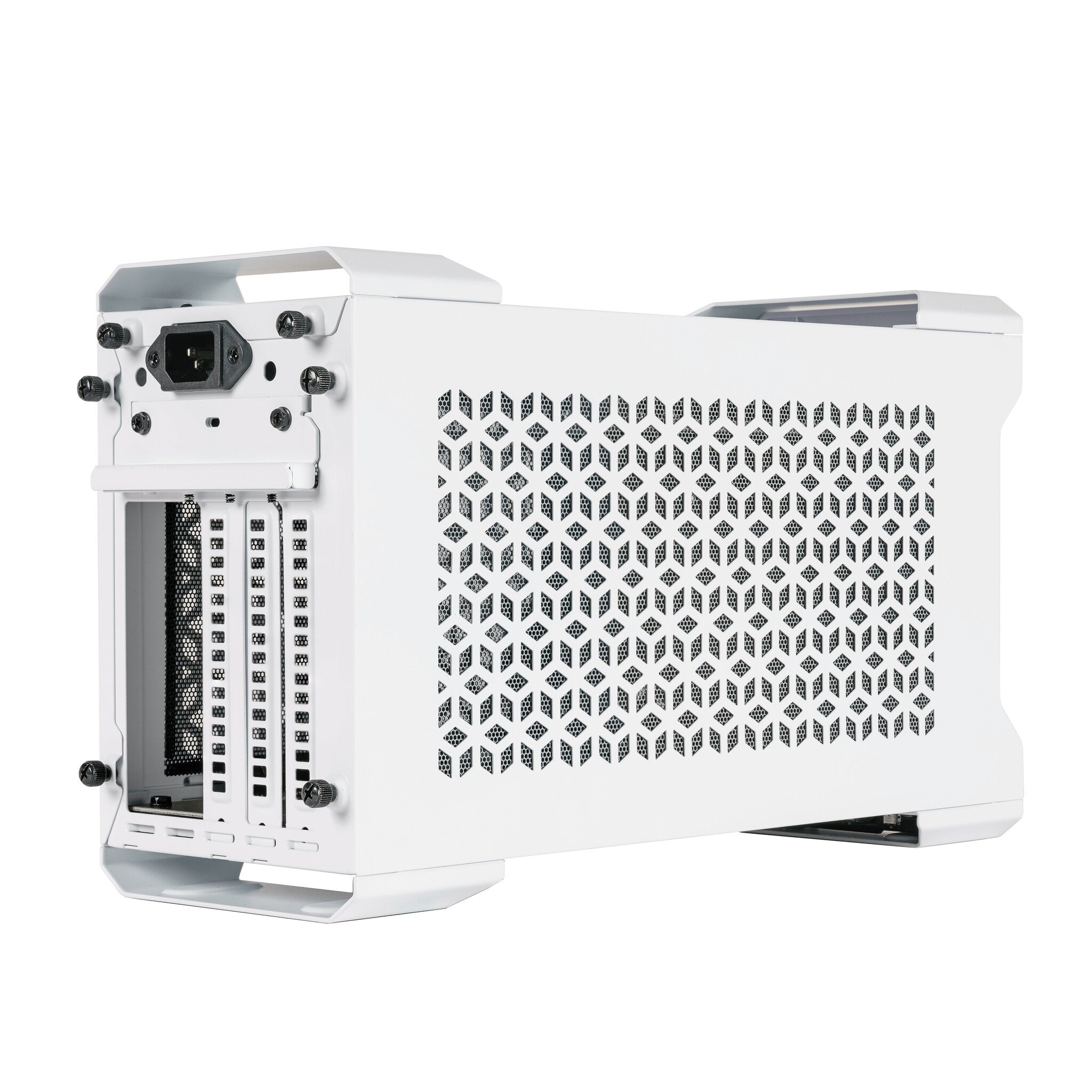

Cooler Master MasterCase NC100 – Small Form Factor PC Case in White
7.9L, 2 x USB 3.1 Gen 2 Type-A, 1 x 3.5mm, ARGB Control, 2 x 92mm Slim PWM 2600RPM, V Gold SFX, 4.49 kg, White
EXTREME COMPACTNESS MEETS EXTREME PERFORMANCE
The MasterCase NC100 is a brand new small-form-factor enclosure specifically designed to bring out the best of the Intel® NUC 9 Extreme Compute Element.
At 7.9 liters of internal volume, the NC100 can fit full size GPUs while staying compact for portability. Heavy ventilation flanks all sides of the chassis, allowing fresh air to keep all the components cool. Twin 92mm fans immediately remove heat from the system further improving thermal efficiency. An all-steel construction protects the internal components while the highly modular design allows access to the system from all angles for easier maintenance and assembly.
Intel® NUC 9 Extreme Compute Element Compatible
The NC100 is the first NUC 9 Extreme Compute Element chassis with full-length GPU compatibility.
Ultra Compact 7.9 Liter Internal Volume
The compact 7.9 liter internal volume allows full-size GPU compatibility and better thermal performance.
Fully Accessible Design
The NC100 can be opened from all sides to provide access to the components inside from all angles for easier accessibility.
Excellent Cooling Capability
Two slim 92mm fans immediately exhaust hot air from the enclosure, granting excellent thermal performance.
| Design |
| Maximum graphics card length |
32 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Illumination colour |
Blue, Green, Red |
| Illumination |
Yes |
| Number of expansion slots |
3 |
| Product colour |
White |
| Material |
Acrylonitrile butadiene styrene (ABS), Steel |
| Type |
PC |
| Form factor |
Small Form Factor (SFF) |
| Power supply |
| Supported power supply form factors |
SFX |
| Number of power supply units |
1 |
| Power supply |
650 W |
| Power supply included |
Yes |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Cooling |
| Fan speed |
0 – 2600 RPM |
| Top fans diameters supported |
92 mm |
| Number of top fans supported (max) |
2 |
| Top fans installed |
2x 92 mm |
| General |
| Product Family |
MasterCase |
| Packaging content |
| EPS power connector (4+4 pin) |
Yes |
| Weight & dimensions |
| Weight |
4.49 kg |
| Height |
214 mm |
| Depth |
370 mm |
| Width |
128 mm |
| Packaging data |
| Package weight |
4.92 kg |
| Package height |
260 mm |
| Package depth |
423 mm |
| Package width |
185 mm |
| Cables included |
AC, PCIe, SATA |
| LED controller |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| Compatible products |
Intel NUC 9 Extreme |
| Volume |
7.9 L |
