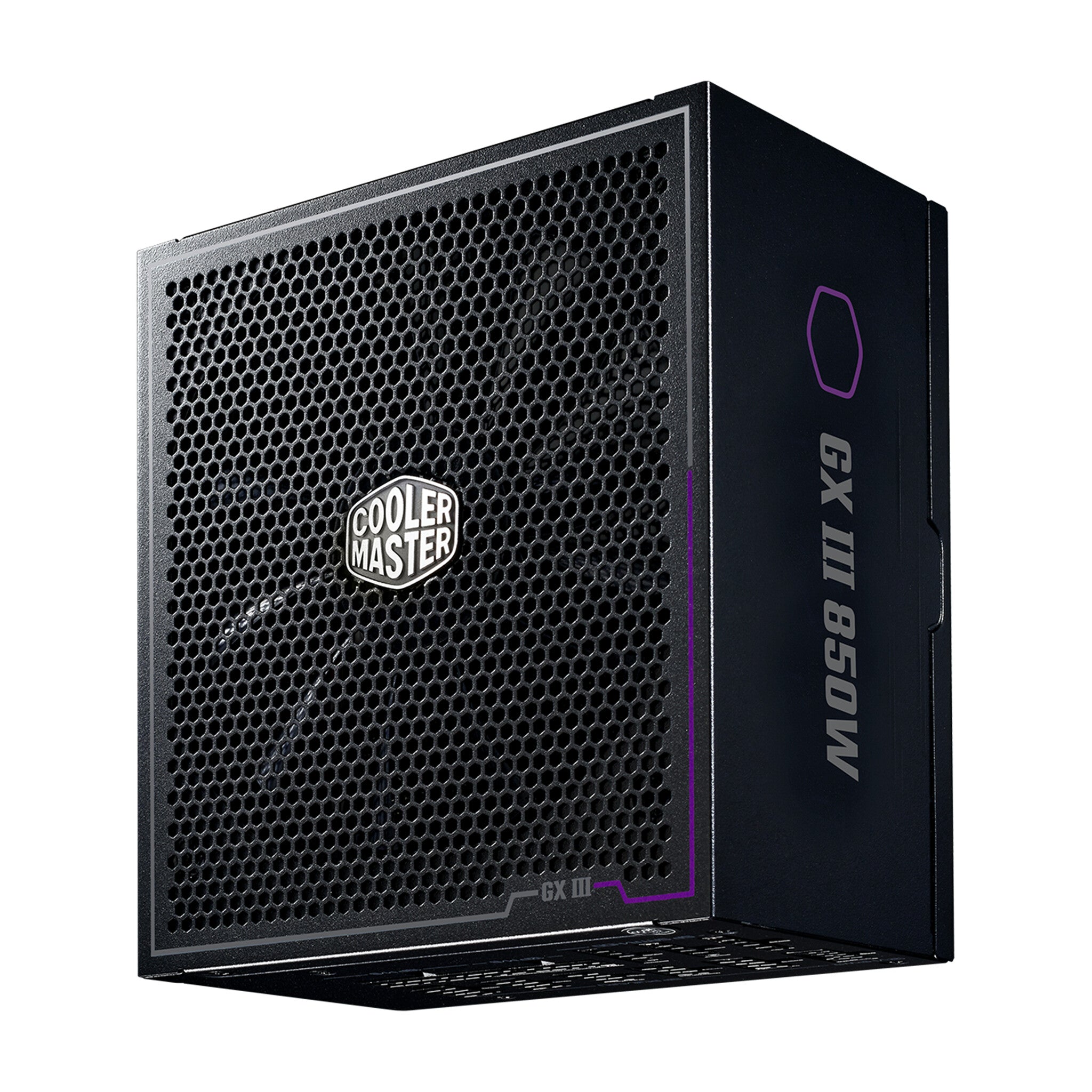

Cooler Master GX III – 850W 80+ Gold Fully Modular Power Supply Unit in Black
850W, ATX 12V Ver. 3.0, 100-240V, 10-5A, 50-60Hz, 135mm, HDB, 1900 RPM, 80 PLUS Gold, 100 – 150 ms, 2.614 kg, UK
STRENGTH IN ELEGANCE
Cooler Master presents the GX III Gold featuring exceptional efficiency, low noise output, and superb reliability.
Innovative, streamlined design
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.
ATX 3.0 support & a durable 90-degree 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 450W to your GPU.
Optimized thermal performance
An anodic-coated heat sink keeps average temperatures 5℃ lower than a traditional heat sink for enhanced durability and a prolonged life span.
CERTIFIED EFFICIENCY
80 Plus Gold and Cybenetics Platinum certifications indicate achievement of more than 90% efficiency at typical loads. This Gold certified unit can also achieve Titanium level efficiency under general light load usage in a 115V test.
SILENT FAN PERFORMANCE WITH A ZERO-RPM MODE
This unit has received a Cybenetics A- noise level certification and includes a smart thermal control mode that defaults to zero spin.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
16 ms |
| Efficiency |
90% |
| Power Good signal delay range |
100 – 150 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
70.8 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
849.6 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
5 – 10 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Total power |
850 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express power cable length |
55 cm |
| PCI Express power connectors (12+4 pin) |
1 |
| PCI Express power connectors (12+4 pin) cable length |
650 mm |
| PCI Express power connectors (6+2 pin) |
3 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
860,740,620,500 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
500,620,740,860 mm |
| Number of SATA power connectors |
8 |
| Motherboard power cable length |
61 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Certification |
ErP 2014 Lot 3 |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HDB |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC/Server |
| Design |
| Fan speed |
0 – 1900 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
2.61 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
| Package weight |
3 kg |
| Package height |
125 mm |
| Package depth |
320 mm |
| Package width |
195 mm |
| Technical details |
| Sustainability compliance |
Yes |
| Sustainability certificates |
BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RoHS, TUV, UKCA, cTUVus |
| Logistics data |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case height |
231 mm |
| Master (outer) case length |
520 mm |
| Master (outer) case width |
335 mm |
| Master (outer) cases per pallet |
24 pc(s) |
| Other features |
| EPS cable length |
60 cm |
- GX III Gold | Strength in Elegance
