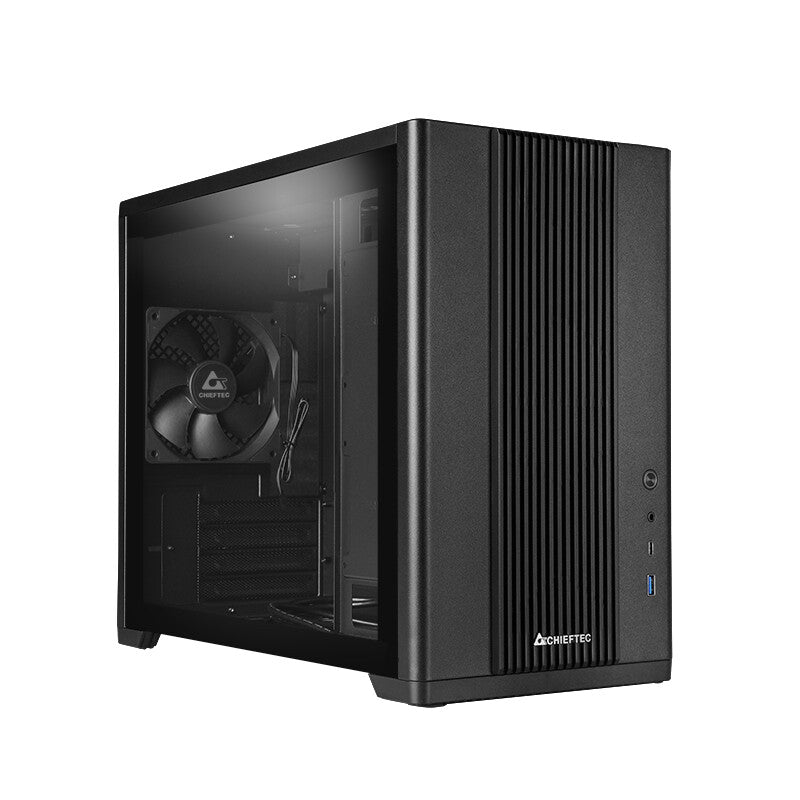

Chieftec BX-10B-OP – MicroATX Mid Tower Case in Black

BX-10B-OP, m-ATX, 120mm PWM fan pre-installed, 0.6mm SPCC, 415 x 204 x 325mm, 4.78 kg, black

The CHIEFTEC BX-10B-OP is a modern, compact mini tower that combines elegant and subtle design with high functionality and easy-installation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-OP from a space or cooling perspective.

Design
Maximum graphics card length	38 cm
Maximum CPU cooler height	16.5 cm
On/off button	Yes
Anti-dust filter	Yes
Tempered glass panel(s)	Yes
Illumination	No
Side window	Yes
Number of expansion slots	4
Full-Height expansion slots	4
Number of 2.5″ bays	4
Number of 3.5″ bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Material	SPCC, Carbon steel
Type	PC
Form factor	Tower

Power supply
Power supply included	No

Ports & interfaces
Audio output	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1

Cooling
Top radiator sizes supported	240 mm
Liquid cooling capability	Yes
Liquid cooling installed	No
Bottom fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of top fans supported (max)	2
Rear fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans installed	1x 120 mm

Storage
Supported HDD sizes	2.5,3.5″

Technical details
Warranty period	2 year(s)
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS

Weight & dimensions
Material thickness	0.6 mm
Weight	4.78 kg
Height	325 mm
Depth	415 mm
Width	204 mm

Packaging data
Package weight	5.48 kg

• UNI Series Mini-Tower / BX-10B-OP
