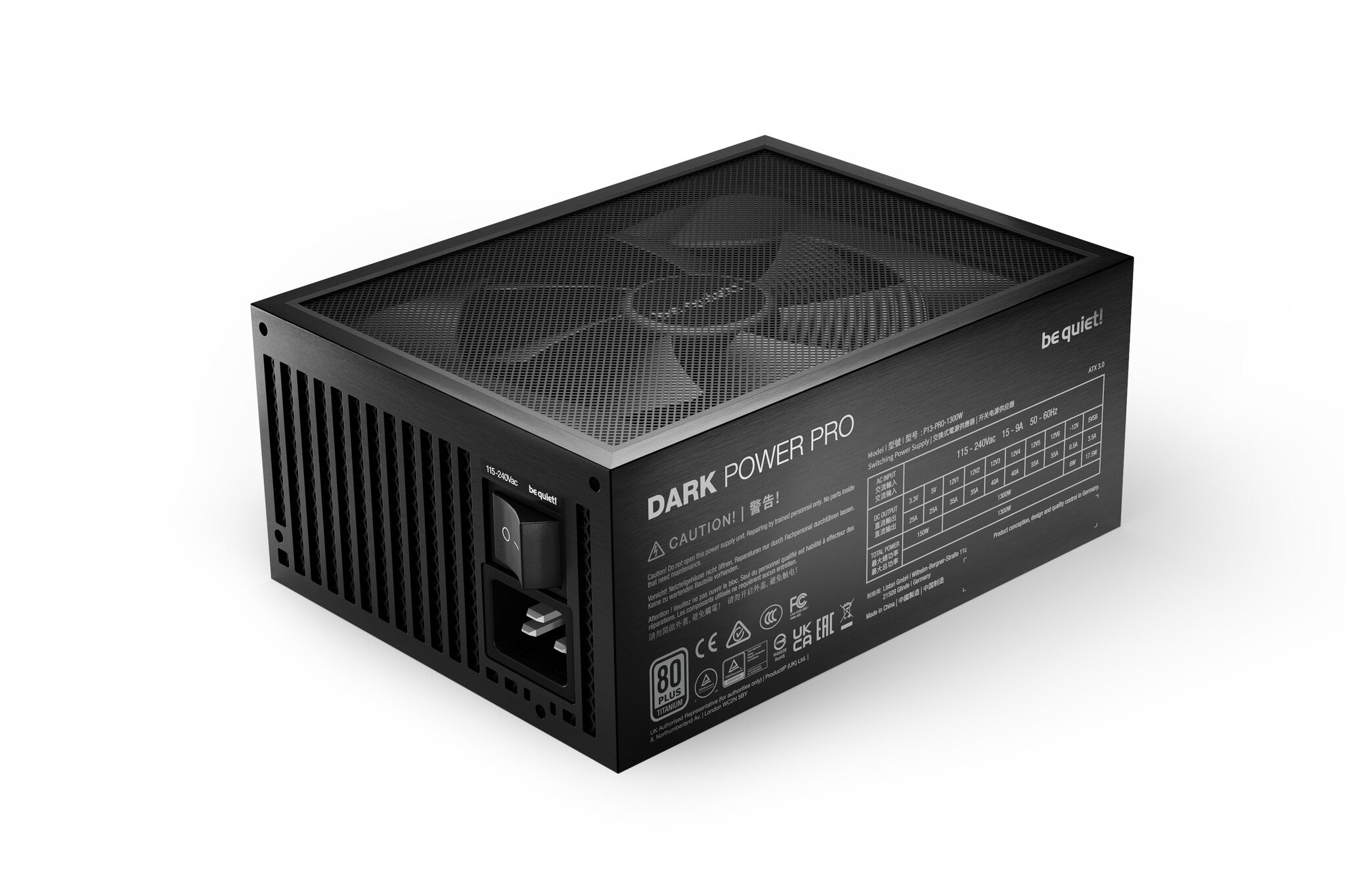

be quiet! Dark Power Pro 13 – 1300W 80+ Titanium Fully Modular Power Supply Unit
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power Pro 13 1300W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power Pro 13 1300W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1300W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power Pro 13 1300W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR EXTREME OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 13 1300W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
HIGHEST CONVENIENCE
Modular cables for maximum utility
Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
MAGNIFICENT APPEARANCE
No compromises
Dark Power Pro 13 1300W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+12V2) | 35 A |
| Max output current (+12V1) | 35 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 17.5 W |
| Combined power (-12V) | 6 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 1300 W |
| Combined power (+3.3V) | 150 W |
| Power factor | 0.99 |
| Input current | 15 – 9 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 115 – 240 V |
| Peak power | 1400 W |
| Total power | 1300 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 70 cm |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (6+2 pin) | 6 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 600,750,900,1050 mm |
| SATA power cable length | 500,600,750,800,900,950,1050 mm |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 5 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Noise level | 23.2 dB |
| EPS version | 2.92 |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 2.41 kg |
| Height | 86 mm |
| Depth | 200 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 6.8 kg |
| Package height | 152 mm |
| Package depth | 417 mm |
| Package width | 253 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | CCC, CE, Federal Communications Commission (FCC), UKCA |
| Warranty period | 10 year(s) |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case height | 28.3 cm |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case net weight | 14.4 kg |
