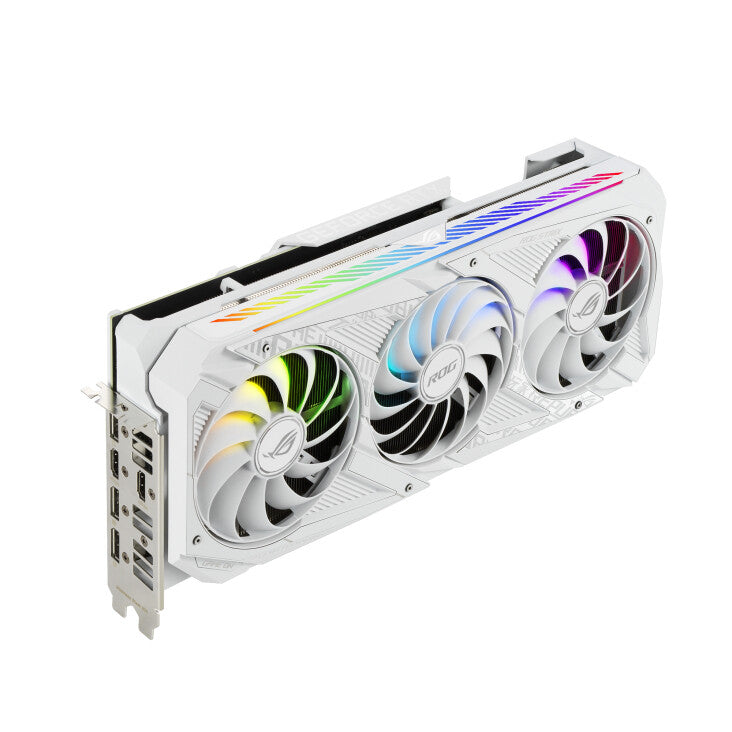

ASUS ROG STRIX V2 “White Edition” – NVIDIA 8 GB GDDR6 GeForce RTX 3070 graphics card
TAKE FLIGHT
This limited edition of the ROG Strix GeForce RTX™ 3070 features a completely white colorway on top of all the generational improvements to the ROG Strix series. Now’s your chance to build a high-end white-themed gaming rig with the latest in graphics technology.
AXIAL-TECH UPGRADES
Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader.
NEW DIRECTIONS
To bolster the specialized roles of the center and auxiliary fans, the rotational direction of the center fan is reversed. This reduces air turbulence inside the cooling array for another boost to overall thermal performance. The fans also shut off completely when card power consumption is low and the GPU temperature falls beneath 50 Celsius, keeping noise levels down when the system is under a light load.
MAXCONTACT
To get heat up off the die and into the heatsink array to benefit from the new fan design requires special attention. We use a manufacturing process that polishes the surface of the heat spreader to improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for improved thermal transfer.
2.9-SLOT DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.
WHITE EDITION
The shroud, fans, metal accents, and backplate are carefully color matched to give the Strix an aesthetic tailored for ice-white builds.
IT’S COOLER OUT BACK
Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allows hot air to escape towards chassis exhaust fans instead of being recycled by the GPU’s circulating cooler design. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customization of the card’s default behavior without software.
FUNCTIONAL FRONT
Careful attention has been paid to the front of the GPU, as it’s the most visible part of the card in typical configurations. A new addressable RGB element can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the GeForce RTX 3070, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix’s reinforced metal frame is also visible here, adding a literal layer of durability.
GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
We’ve partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you’ll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card – and don’t be left waiting!
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
Quantumcloud is a simple and secure service that lets you effortlessly earn extra money by putting your idle GPU to work. Earnings are automatically transferred to your WeChat or PayPal account, and your privacy remains intact because Quantumcloud doesn’t collect your personal data. Get started making money today!
| Processor | |
|---|---|
| Maximum displays per videocard | 4 |
| Processor boost clock speed (OC mode) | 1755 MHz |
| Processor boost clock speed | 1725 MHz |
| Processor frequency | 1500 MHz |
| CUDA cores | 5888 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 3070 |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Data transfer rate | 14 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4a |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| Interface type | PCI Express 4.0 |
| Performance | |
|---|---|
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | White |
| Illumination | Yes |
| Number of slots | 2.9 |
| Number of fans | 3 fan(s) |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 750 W |
| General | |
|---|---|
| Product Family | ROG |
| Product Series | Strix |
| Weight & dimensions | |
|---|---|
| Depth | 57.8 mm |
| Height | 140.1 mm |
| Length | 318.5 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Manual | Yes |
