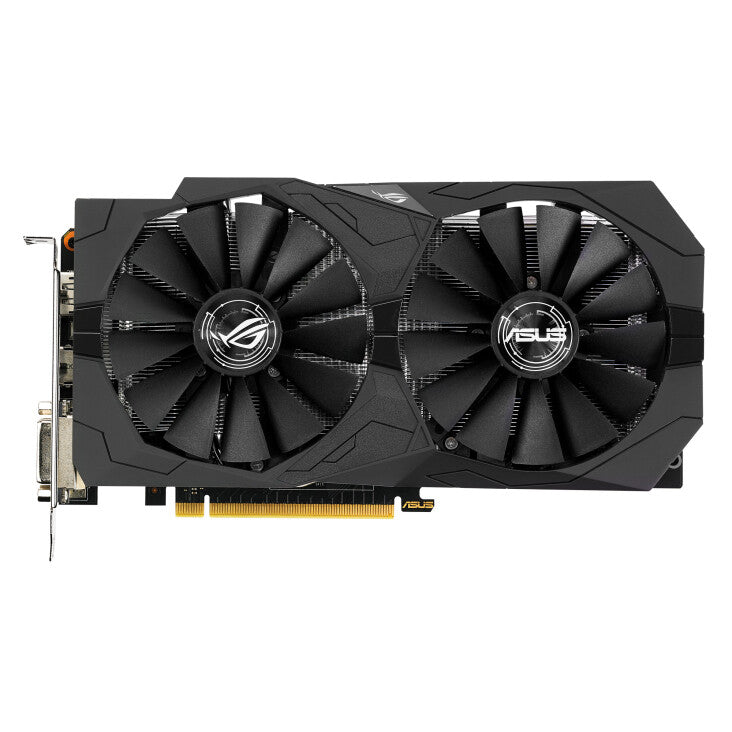

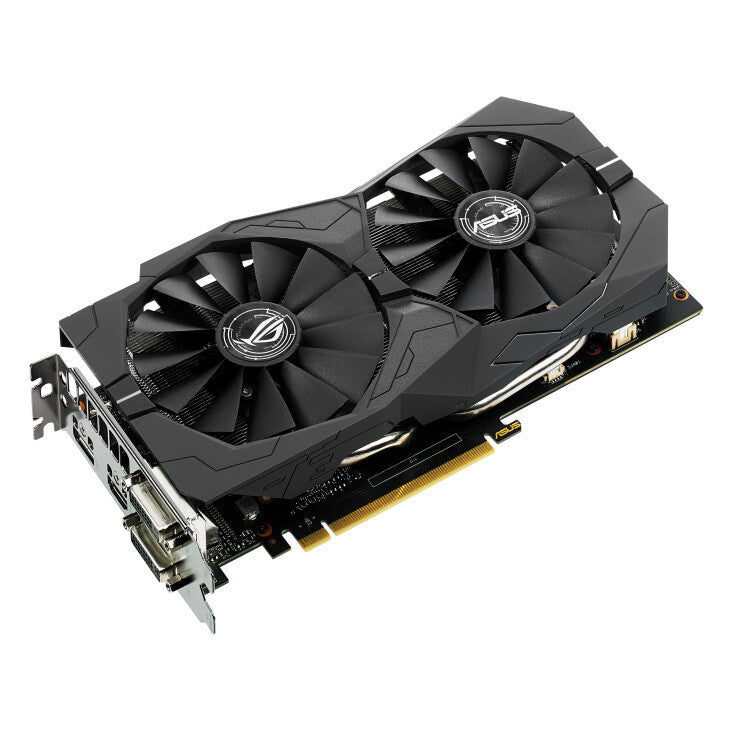

ASUS ROG STRIX – NVIDIA 4 GB GDDR5 GeForce GTX 1050 Ti graphics card
OUTSHINE THE COMPETITION
ROG Strix GeForce GTX 1050 Ti gaming graphics cards are packed with exclusive ASUS technologies, including DirectCU II Technology with Patented Wing-Blade Fans for up to 30% cooler and 3X quieter performance, and Industry-only Auto-Extreme Technology for premium quality and the best reliability. Aura RGB Lighting enables a gaming system personalization. ROG Strix GeForce GTX 1050 Ti also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.
DirectCU II Technology with Direct-GPU Contact Heatpipes
Exclusive DirectCU II cooling technology features direct-GPU contact heatpipes that transports more heat away from the GPU and outperform reference designs, achieving up to 30% cooler gaming performance.
Patented Dual Wing-Blade 0dB Fans
DirectCU II features dual 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU II the coolest and quietest graphics card in the market.
ASUS FanConnect
When gaming, GPU temperatures are often higher than CPU temps. However, chassis fans usually reference CPU temperatures only, which results in inefficient cooling of the system. For optimal thermal performance, ROG Strix GeForce GTX 1050 Ti graphics cards feature a 4-pin GPU-controlled header that can be connected to system fan for targeted supplemental cooling.
Auto-Extreme Technology
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
4+1 Phase Super Alloy Power II
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
Aura RGB Lighting with Perfect Synchronization
Featuring Aura RGB Lighting on both the shroud, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system.
ROG Strix gaming graphics cards feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard.
Enjoy the Flawless and Complete Gameplay
NVIDIA G-SYNC synchronizes the ROG Swift gaming monitor’s refresh rate to the GPU in your GeForce GTX-powered PC, eliminating screen tearing and minimizing display stutter and input lag. With ROG Strix gaming graphics cards and ROG Swift gaming monitors, scenes appear instantly, objects look sharper, and gameplay is super smooth, giving you a stunning visual experience and a serious competitive edge.
GPU Tweak II with XSplit Gamecaster
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.
XSplit Gamecaster
An included 14-day XSplit Gamecaster premium license lets you easily stream or record gameplay via a convenient, in-game overlay. The overlay also displays GPU clock speed, temperature, and VRM usage, and has GPU Tweak II controls, so gamers can choose a gaming profile and boost performance with just one click.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Processor boost clock speed (Gaming mode) | 1392 MHz |
| Processor boost clock speed (OC mode) | 1506 MHz |
| Processor boost clock speed | 1493 MHz |
| Processor frequency | 1379 MHz |
| CUDA cores | 768 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1050 Ti |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory clock speed | 7008 MHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 4 GB |

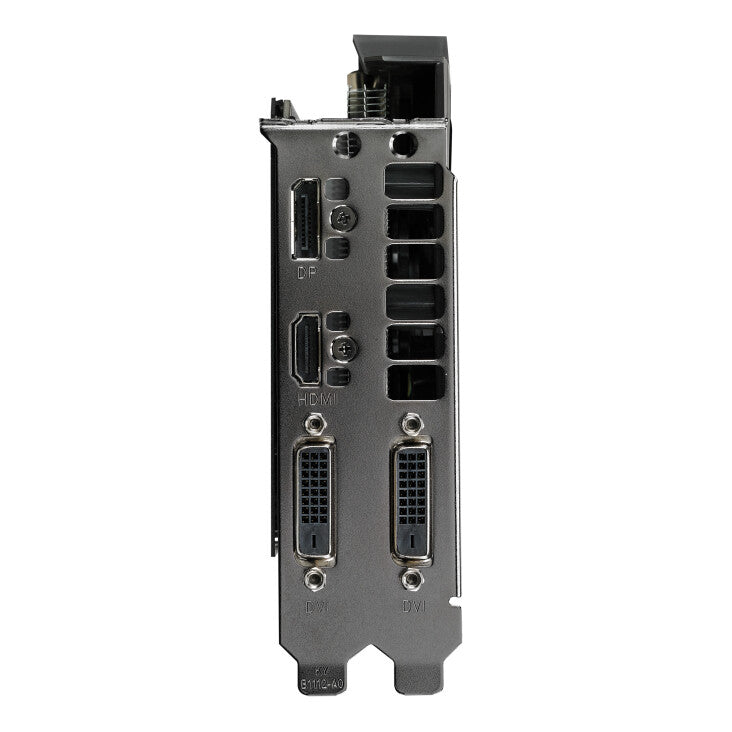

| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 3.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| OpenGL version | 4.5 |
| Design | |
|---|---|
| Number of slots | 2 |
| Number of fans | 2 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 100 W |
| Supplementary power connectors | 1x 6-pin |
| Minimum system power supply | 300 W |
| General | |
|---|---|
| Product Family | ROG |
| Product Series | Strix |
| Weight & dimensions | |
|---|---|
| Depth | 40 mm |
| Height | 129 mm |
| Length | 241 mm |
