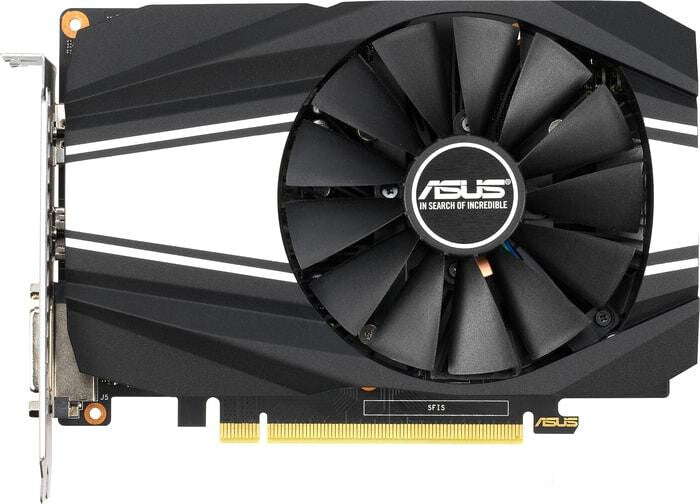

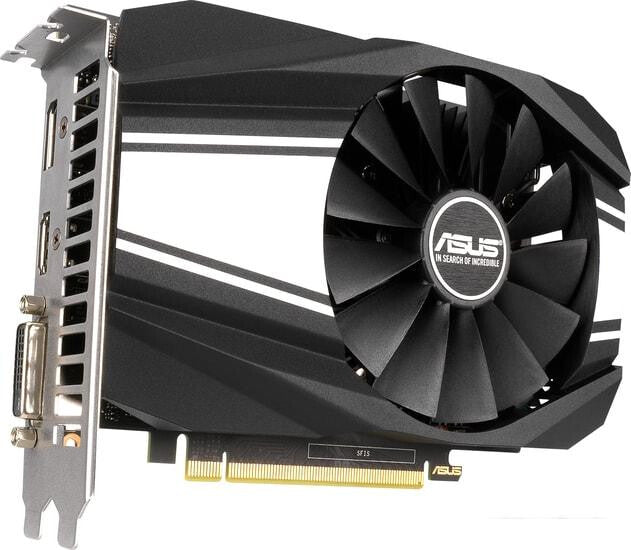

ASUS Phoenix – NVIDIA 6 GB GDDR6 GeForce GTX 1660 SUPER graphics card
Packs a Punch
The ASUS Phoenix GeForce® GTX 1660 SUPER™ is a high definition powerhouse packed into a compact layout. It boasts a large single fan with a Wing-blade design that has trickled down from top tier cards. This gives the Phoenix a performance boost over the competition, while keeping its size small enough to be compatible with most modern chassis. Just like its namesake, the Phoenix also boasts a long lifespan with features like IP5X dust resistance, dual ball fan bearings, and Auto-Extreme Technology. If you’re looking for a nimble sidekick that will keep pushing pixels for years to come, the Phoenix is your beast.
Wing-blade Fan Design
They’re pretty fly
Our patented Wing-blade fan design adds drooped tips to each fan blade in order to reduce drag.
Dual Ball Fan Bearings
2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve-bearing designs.
IP5X Dust Resistance
Keep it clean
Dust is enemy number one for fans. It’s easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you’ll never need that deep clean.
Auto−Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Compact Design
The pieces fit
The Phoenix packs potent rendering power into a compact frame that maximizes compatibility with the latest chassis.
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
NVIDIA® G−SYNC™ Technology
Smooth operator
This graphics card supports NVIDIA® G-SYNCTM display technology for a super-smooth variable refresh rate experience. Enjoy AAA games without the nuisance of screen tearing or stuttering.
| Processor | |
|---|---|
| Processor boost clock speed | 1830 MHz |
| Processor frequency | 1530 MHz |
| CUDA cores | 1408 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce GTX 1660 SUPER |
| Graphics processor family | NVIDIA |
| Memory | |
|---|---|
| Memory clock speed | 14002 MHz |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 6 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express 3.0 |
| Performance | |
|---|---|
| HDCP | Yes |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
|---|---|
| Power consumption (typical) | 450 W |
| Supplementary power connectors | 1x 8-pin |
| General | |
|---|---|
| Product Family | Phoenix |
| Weight & dimensions | |
|---|---|
| Depth | 39 mm |
| Height | 121 mm |
| Length | 174 mm |
| Packaging data | |
|---|---|
| User guide | Yes |
