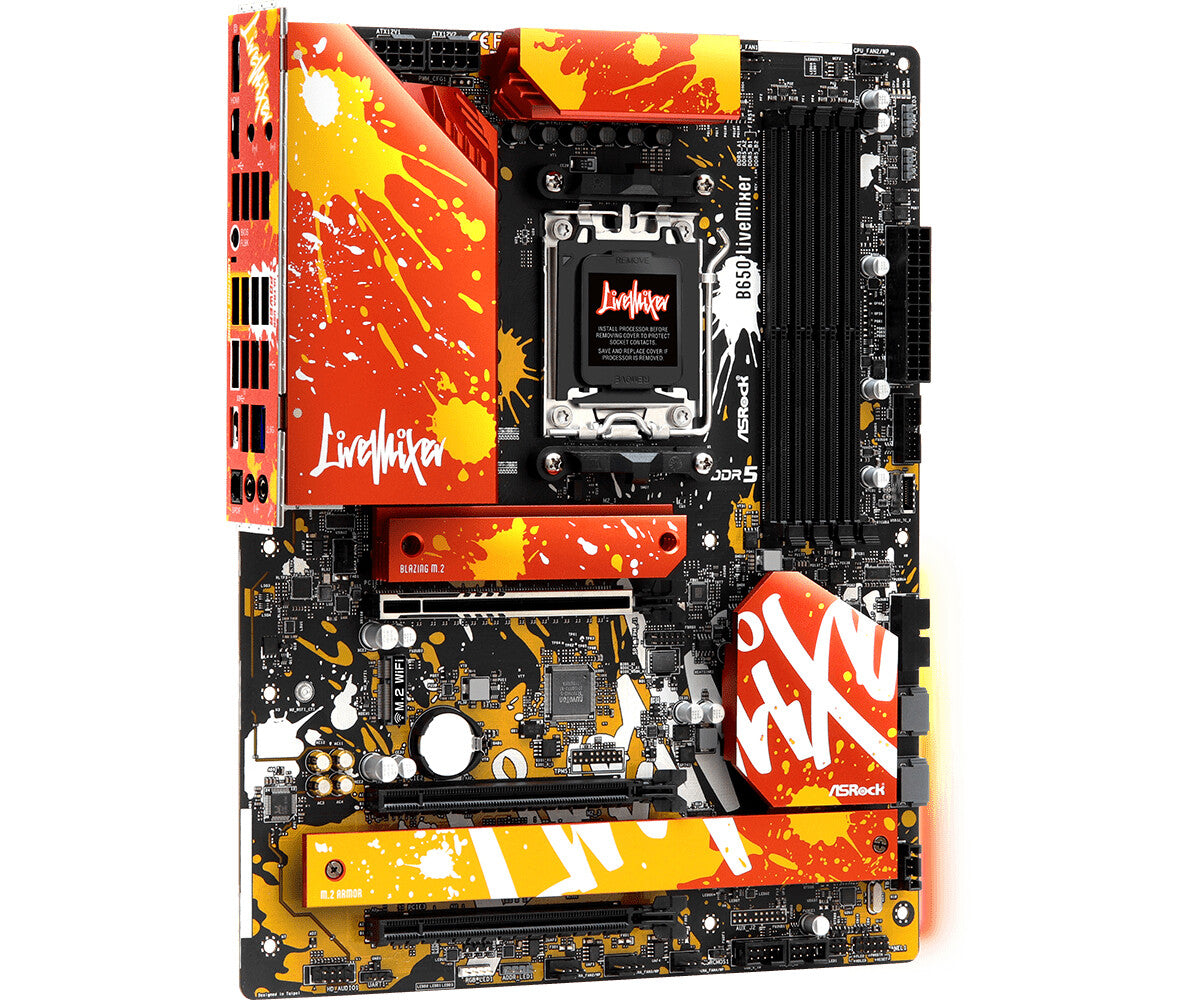

Asrock B650 LiveMixer ATX motherboard – AMD B650 Socket AM5
AM5, AMD B650, 4 x DDR5 DIMM, 7.1 CH HD Audio, 2.5 Gigabit, ATX
LIVE MIX LIFE MAX
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
Broadcasting
Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.
Content Creation
Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
– Content Creator
– Video Editing
– Photo Editor
– Game Development
Multiple Streaming Devices
We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.
| Processor |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen™ 5 |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
5 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Internal I/O |
| RGB LED pin header |
Yes |
| Thunderbolt headers |
1 |
| TPM connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
8 |
| Network |
| Wi-Fi |
No |
| LAN controller |
Dragon RTL8125BG |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
AMD B650 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
3 |
| BIOS |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
305 mm |
