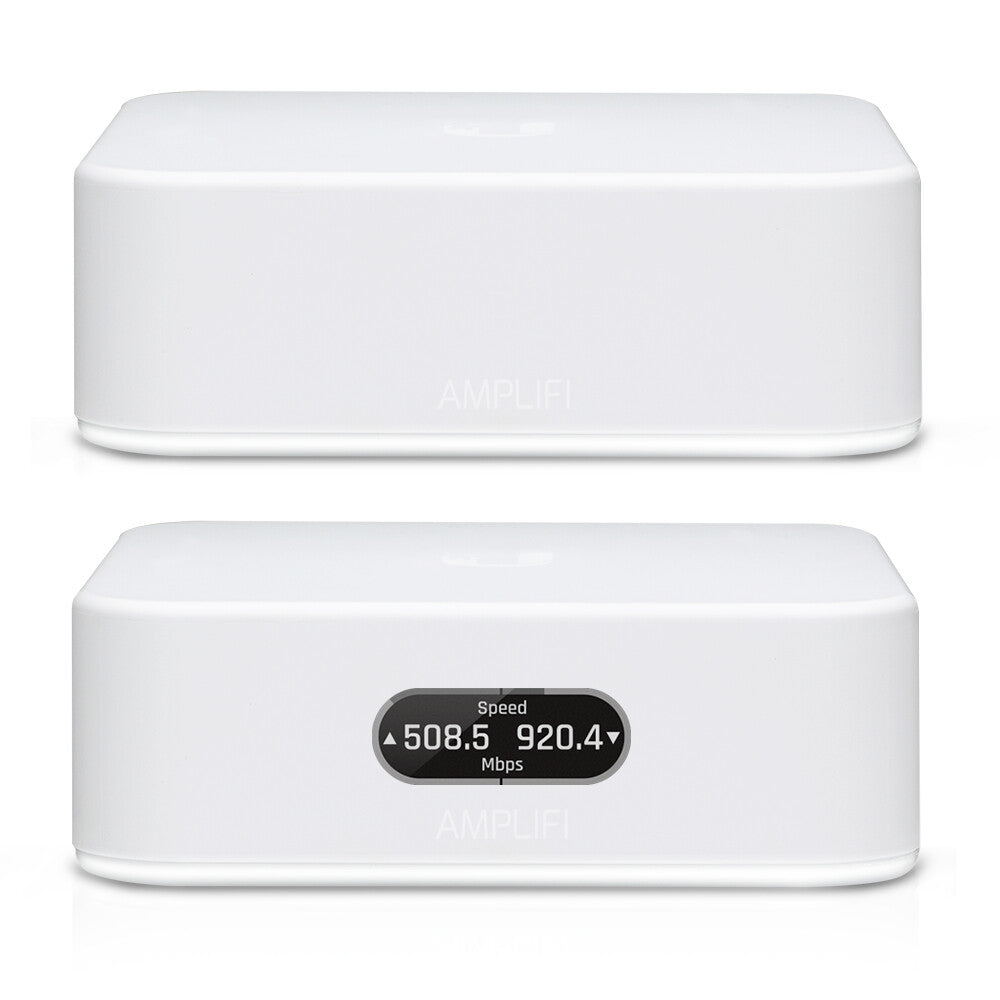

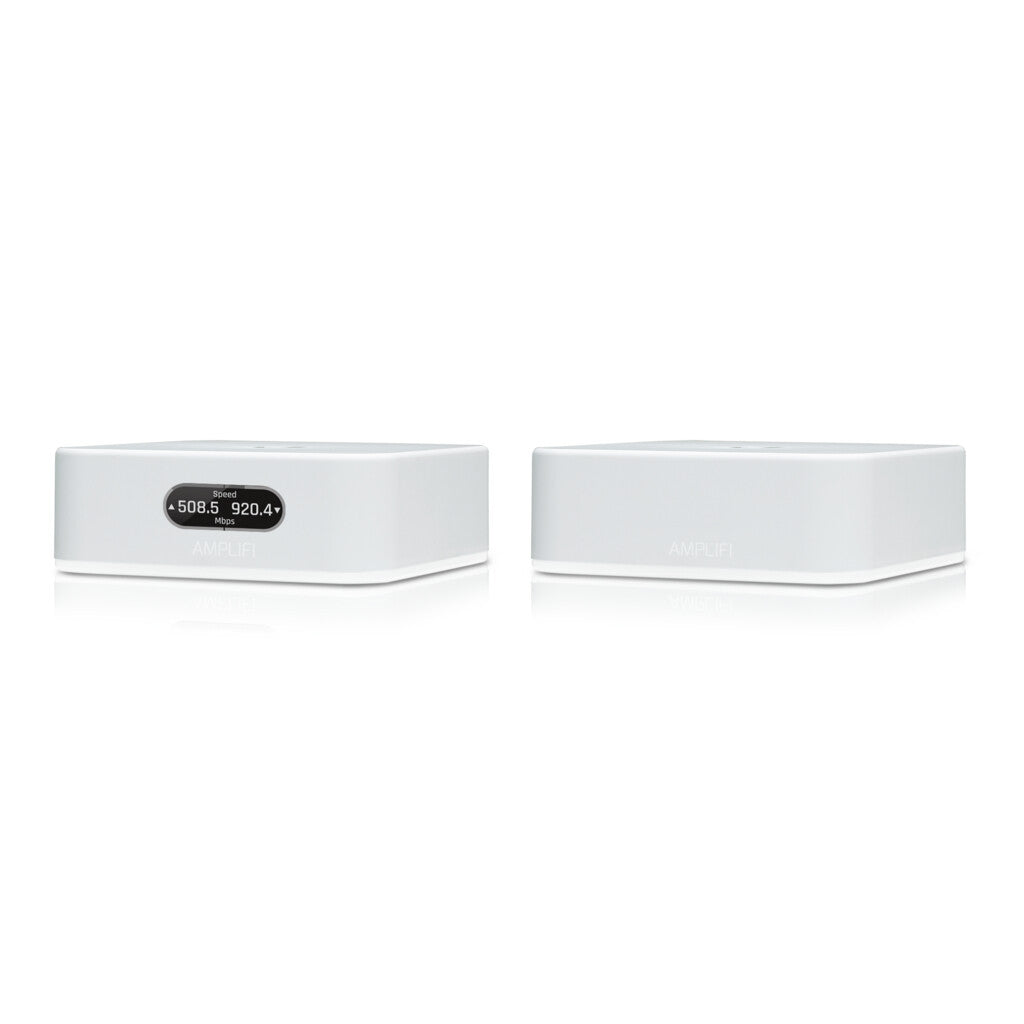

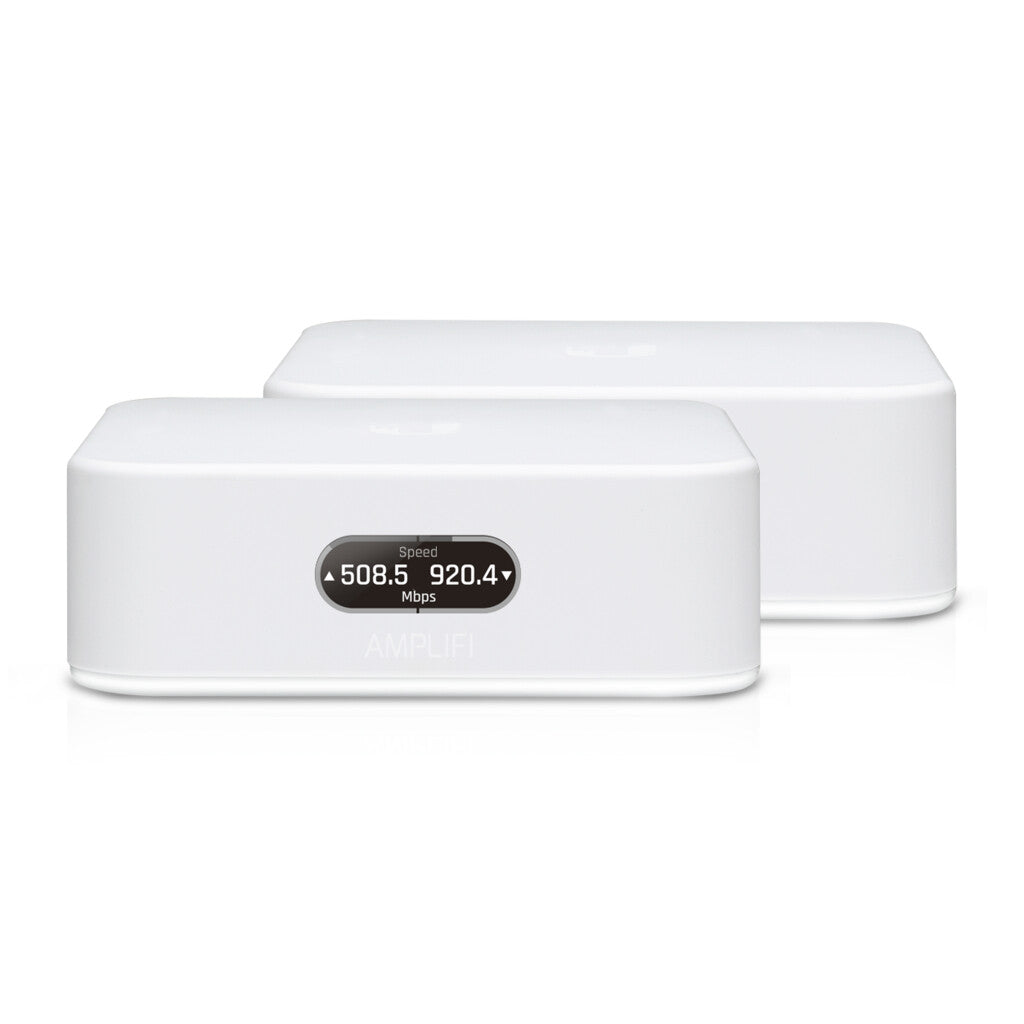

AmpliFi Instant – Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Router

AmpliFi Instant System, 2.4 GHz / 5 GHz, 22 dBm, 867 Mbps, 802.11ac/a/b/g/n, incl. 1x MeshPoint, EU

The AmpliFi Instant Wi-Fi System includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one MeshPoint with an Ethernet port to maximize coverage and eliminate dead zones in your home.

The AmpliFi Instant Wi-Fi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless Wi-Fi.

Say hello to a fresh design aesthetic
And goodbye to trying to discreetly hide your router. You need your router where you use your devices the most; like your office, family room or bedroom. The AmpliFi Instant is designed to complement your home’s interior both functionally and aesthetically. Now you can place your router on your desk, side table or nightstand without messing up your home’s decor.

Features you want from a system you can understand
The AmpliFi Instant has the features you want, like device status and guest access, with a simple interface that doesn’t require advanced technical degrees. Its glowing LED light indicates the system status while the AmpliFi App puts you in control of your WiFi.

AmpliFi Instant Mesh System
Mix and match your mesh technology to strengthen Wi-Fi signals in the areas of your home where you need it the most. In addition to the AmpliFi Instant kit, which features an Instant MeshPoint, you can add AmpliFi HD MeshPoints or AmpliFi HD Routers to ensure complete coverage.

WAN connection
WAN connection type	RJ-45
3G/4G USB modem compatibility	No
SIM card slot	No
DSL WAN	No
Ethernet WAN	Yes

Wireless LAN features
WLAN data transfer rate (second band)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)

Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes

Mobile network
3G	No
4G	No

Ports & interfaces
Memory card slot(s)	No
USB port	Yes
Ethernet LAN (RJ-45) ports	2

Management features
Reset button	Yes

Security
Security algorithms	WPA2-PSK, WPA2-TKIP

Design
Product colour	White
Product type	Tabletop router

Packaging content
AC adapter included	Yes
Cables included	LAN (RJ-45)

Antenna
Transmit power	22 dBmW
Antennas quantity	1
Antenna design	Internal

Power
Power consumption (typical)	9 W
Power source type	AC

Operational conditions
Operating temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	5 – 95%

Weight & dimensions
Width	995 mm
Depth	978 mm
Height	330.5 mm
Weight	215 g

Packaging data
Number of products included	2 pc(s)

Logistics data
Harmonized System (HS) code	85176990
