American DJ Ultra HEX Bar 12
ADJ Ultra HEX Bar 12 – 12x10W HEX LED Linear Fixture

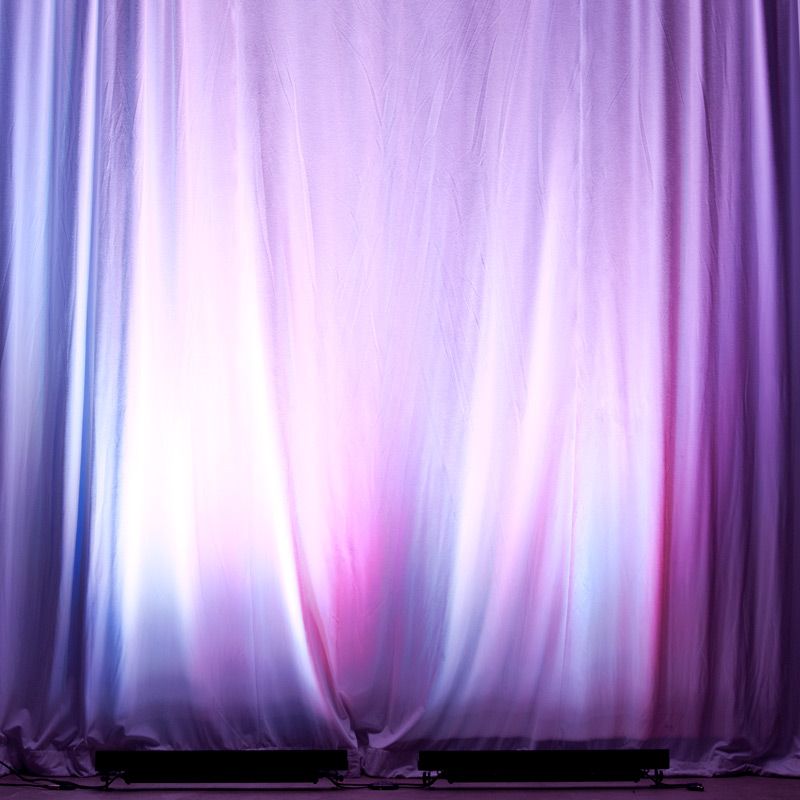

The ADJ Ultra HEX Bar 12 is a versatile LED linear fixture that utilizes 12 x 10-Watt, 6-IN-1 HEX LEDs to produce wide washes with smooth color mixing. It’s ideal for lighting stages, dance floors, and for uplighting venues.
Key Features
12 RGBAW+UV HEX LEDs: 6-in-1 LEDs for rich color mixing.
10W Individual LED Wattage: Provides high output and vibrant colors.
40-degree Beam Angle: Offers wide coverage.
Flicker-Free Operation: Suitable for film and television applications.
6 Operational Modes: Auto Run, Program, Sound-Active, Manual, Static Color, and DMX-512.
5 DMX Channel Modes: 6, 7, 8, 12, or 36 channels for flexible control.
6-Zone RGBAW+UV Control: Allows for dynamic color zoning.
0%-100% Electronic Dimming: Smooth and precise dimming.
5 Dim Curves: Standard/Stage/TV/Architectural/Theatre for tailored dimming response.
Strobe & Pulse Effects: Adds dynamic movement to lighting.
LCD Display with 4-Button Control: Easy menu navigation.
Black Metal Housing: Durable and professional appearance.
2 Adjustable Hanging Brackets: For versatile mounting options.
Magnetic “Quick-Align” Endcaps: For seamless fixture linking.
Integrated Shield: Hides LEDs when used for uplighting.
Technical Specifications
Source: 12 RGBAW+UV HEX-LEDs, 10W each
Beam Angle: 40 degree
Control Modes: Auto Run, Program, Sound-Active, Manual, Static Color, DMX-512
DMX Channel Modes: 6, 7, 8, 12, 36
Dimming: 0%-100% electronic
Dim Curves: Standard/Stage/TV/Architectural/Theatre
Housing: Black Metal
Power Input: IEC In/Out
DMX Connections: Locking 3-pin DMX In/Out
Power Operation: Multi-voltage 100-240V, 47/63Hz
Power Draw: 90W
What’s in the box
ADJ Ultra HEX Bar 12
2 Adjustable Hanging Brackets
Power Cable
User Manual
