AlphaTheta XDJ-AZ

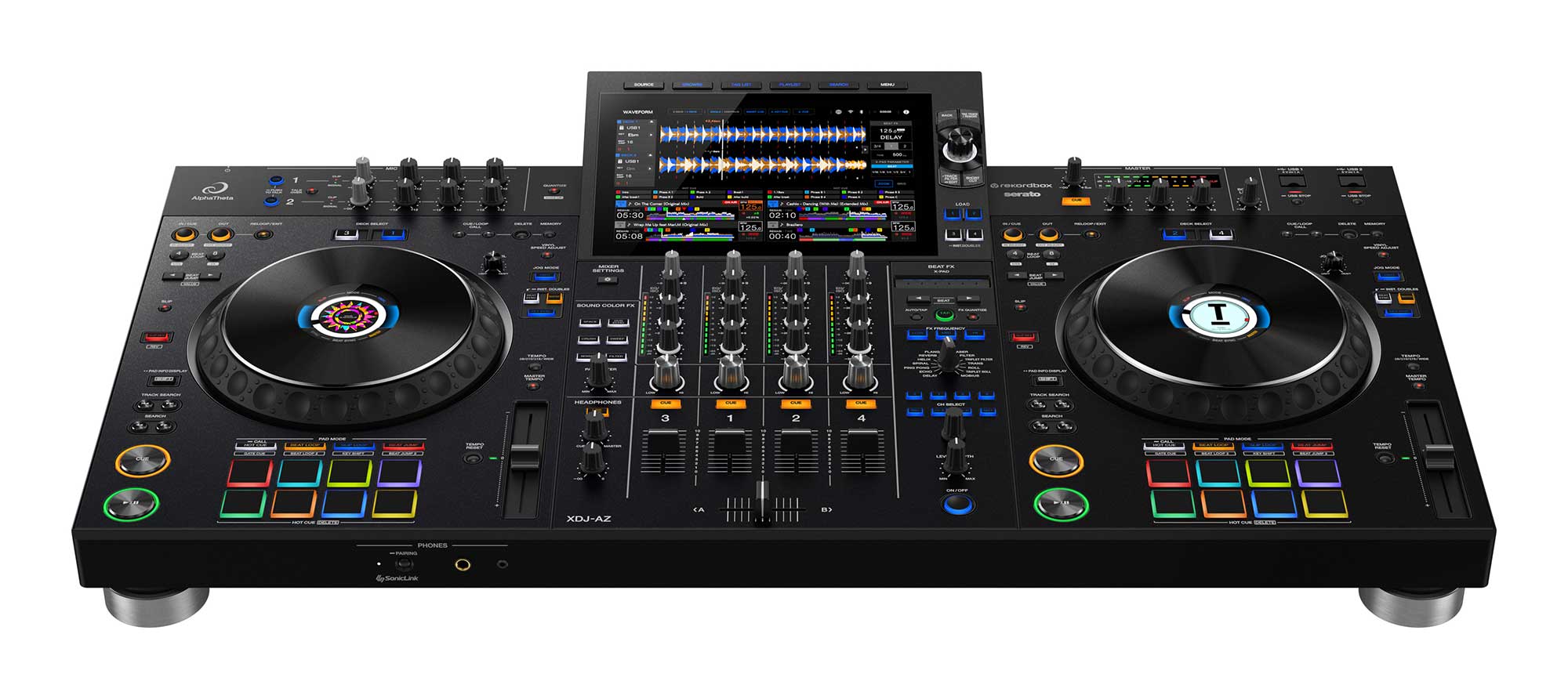

AlphaTheta XDJ-AZ – 4-Channel Standalone DJ System
The AlphaTheta XDJ-AZ is the next-generation 4-channel standalone DJ system, building upon the legacy of the XDJ-XZ. Featuring a larger 10.1-inch touchscreen, enhanced connectivity with built-in Wi-Fi, Bluetooth, and SonicLink wireless technology, and a club-standard layout, the XDJ-AZ offers unparalleled flexibility and performance for professional DJs.
Features:
4-Channel Standalone Playback:
Play 4 decks simultaneously from a single USB storage device.
Mix tracks, load samples, and create complex performances with ease.
10.1-Inch High-Resolution Touchscreen:
View more track information and access advanced features.
Display 13 track lines at once for easy browsing.
Utilize Touch Cue and Touch Preview for seamless track selection.
Display performance pad and beat FX information, also view 4 mini waveforms, and 2 main waveforms at the same time.
Wireless Connectivity:
Wi-Fi: Access CloudDirectPlay from rekordbox servers, stream directly from Beatport (subscription required), and connect to local network libraries.
Bluetooth: Connect devices for background music or last-minute requests.
SonicLink: AlphaTheta’s ultra-low latency wireless technology for use with the HDJ-F10 headphones.
Club-Standard Layout:
Mixer section inspired by the DJM-A9, with dedicated Beat FX and Sound Color FX.
CDJ-3000-style full-size jog wheels with onboard displays.
8 high quality performance pads per deck.
High-Quality Audio:
32-bit ESS D/A converters for exceptional sound clarity.
Software Compatibility:
rekordbox for Mac/Windows/iOS/Android.
Serato DJ Pro (coming December 2024).
On-Board Streaming:
Direct streaming from Beatport.
Pro DJ Link:
Enables connection to other pro dj equipment.
Specifications:
Frequency Response: 20 Hz – 20 kHz (USB)
S/N Ratio: 115 dB (USB)
Total Harmonic Distortion: 0.0018% (USB)
Jog Wheel Size: 206 mm
Dimensions (W x D x H): 895 x 504.1 x 133.4 mm (35.24″ x 19.85″ x 5.25″)
Weight: 13.5 kg (29.8 lbs)
Inputs/Outputs:
Inputs:
LINE/PHONO: 2 x RCA
MIC: 2 x XLR & 1/4″ TRS jack
Outputs:
MASTER: 2 x (XLR x 1, RCA x 1)
BOOTH: 1 x 1/4″ TRS jack
PHONES: 2 x (1/4″ stereo jack x 1, 3.5 mm stereo mini-jack x 1)
USB:
Type-A: 2
Type-C: 1
Other:
LAN: 1 x 100BASE-TX
Wireless LAN (IEEE 802.11 a/b/g/n/ac, 2.4 GHz/5 GHz)
Bluetooth (ver. 5.3, SBC/AAC)
SonicLink (2.4 GHz)
Performance Controls:
Channels: 4
Deck Control: 4 (USB Storage Device), 4 (DJ Software Control)
Sound Color FX: DUB ECHO, NOISE, SWEEP, FILTER, SPACE, CRUSH
Beat FX: DELAY, ECHO, PING PONG, SPIRAL, REVERB, TRANS, FILTER, TRIPLET FILTER, FLANGER, PHASER, ROLL, TRIPLET ROLL, HELIX, MOBIUS
Whats in the box
Power cord
Quick Start Guide
Precautions for use
Warranty (for some regions)
