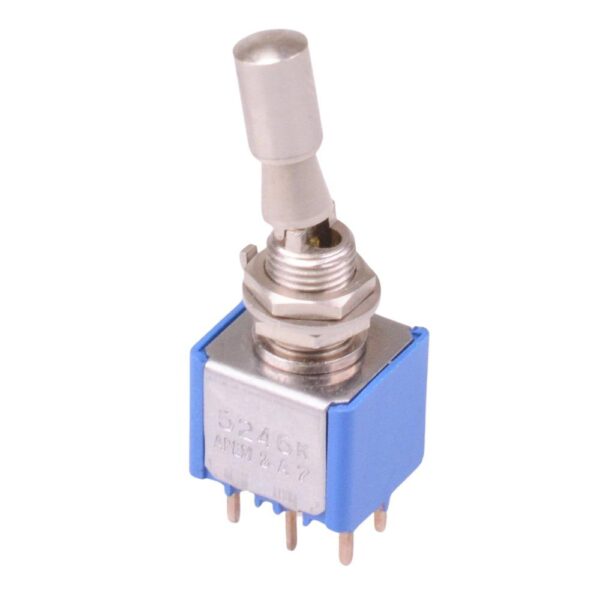

5246AKB2V APEM On-On Miniature Toggle Switch Locking Lever DPDT
The 5246AKB2V is a miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

PCB solder terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

2 position locking lever

Silver contacts

Epoxy sealed terminals

Front panel sealing by one O-ring and washer

14.75mm length lever

Terminal pitch: 4.75 x 4.7mm

Body dimensions: 13.2 x 12.0 x 13.3mm (length x width x height)

UL, CSA, CECC approved

APEM 5000 series
